Description

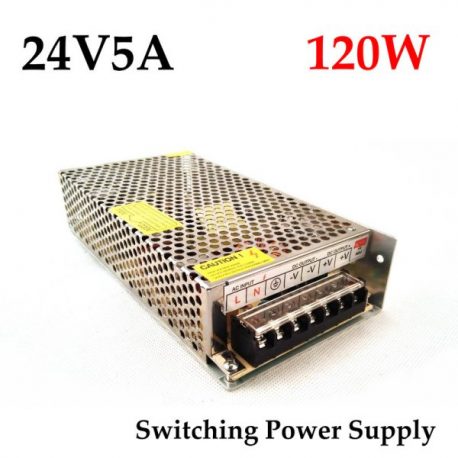

24V 5A 120W Industrial SMPS Power Supply is single output enclosed type power supply with metallic mesh case. Adopting the input of 115VAC or 230VAC.
Features:
- High efficiency, long life, and high reliability
- Low dc ripple, high efficiency
- low operation temperature & long performance life
- Excellent insulation property, high dielectric strength
- 100% full-load burning test
- Dimension: 200*95*45
Input:
- AC input voltage range(V):AC 110V/220V±15% (switch replacement)
- Input current(A):6.5A /115V,4A /230V
- Frequency (Hz):50/60Hz
- Efficiency:87% Typ(230VAC Full Load)
- Inrush current(A):25A/115V 50A/230V cold start
- Leakage current(mA):<3.5mA/240VAC
Output:
- Output Voltage(V):+24VDC
- Voltage Regulation:±10%
- Output Current(A):5A
- Current Range (A):0-5A
- Rated Power(W) :120W
- Start time, hold-up time(ms):Ton≤200ms,Td≥30ms @230Vac Full Load
- Rise time(ms):Typ
