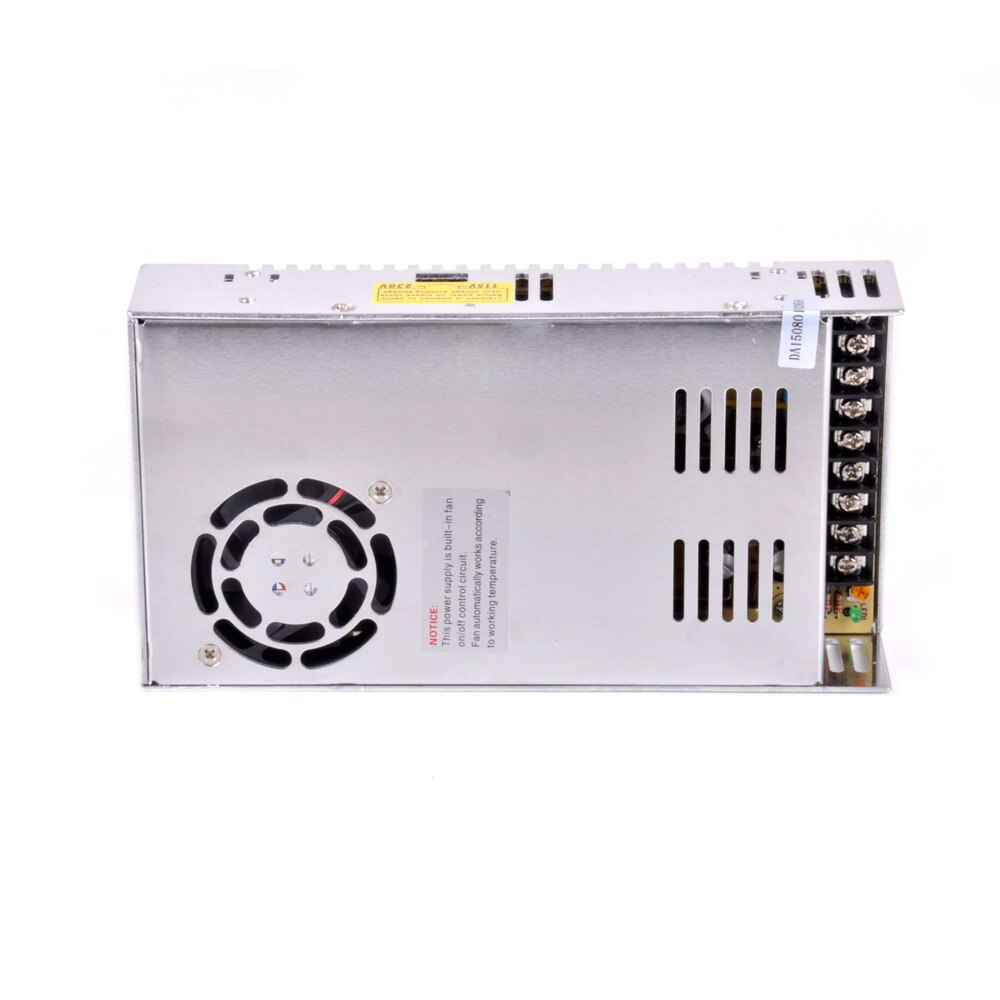

32V 10A 320W switching power supply input 110V 220V AC TO DC SMPS For LED Strip CNC 3D Print transformer：
Input voltage: AC110 / 220V ±15% Input frequency: 50/60HZ
Output voltage: DC 32V
Output voltage: DC 32V
Power: 10A 320W
Output Pole: +V +V +V -V -V -V FG N L
Output Pole: +V +V +V -V -V -V FG N L
Feature: Built-in cooling fan
Size:214*113*50mm
Model:No.S-320-32
110V / 220V±15% AC selected by switch.
Protections: Short circuit /Overload / Over voltage.
High efficiency and low operation temperature.
Soft-start current can reduce the AC inpur impact effecticly.
PWM control and regulated.
100% full-load burn-in test.
Installed with EMI filter, minimum wave.
Fixed switching frequency at 25KHz.
Low price and high reliability.
High efficiency and low operation temperature.
Soft-start current can reduce the AC inpur impact effecticly.
PWM control and regulated.
100% full-load burn-in test.
Installed with EMI filter, minimum wave.
Fixed switching frequency at 25KHz.
Low price and high reliability.
Reviews
There are no reviews yet.
