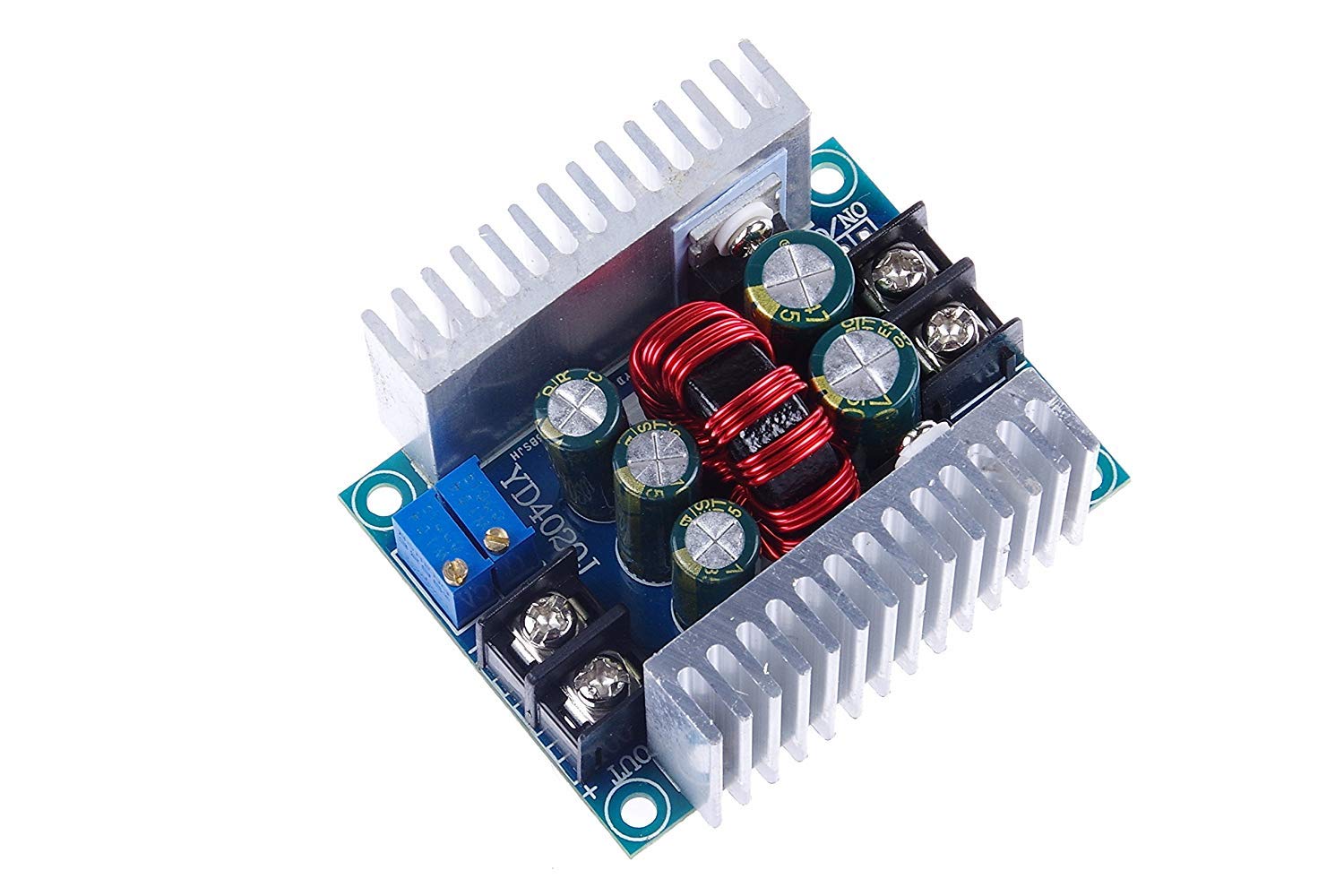

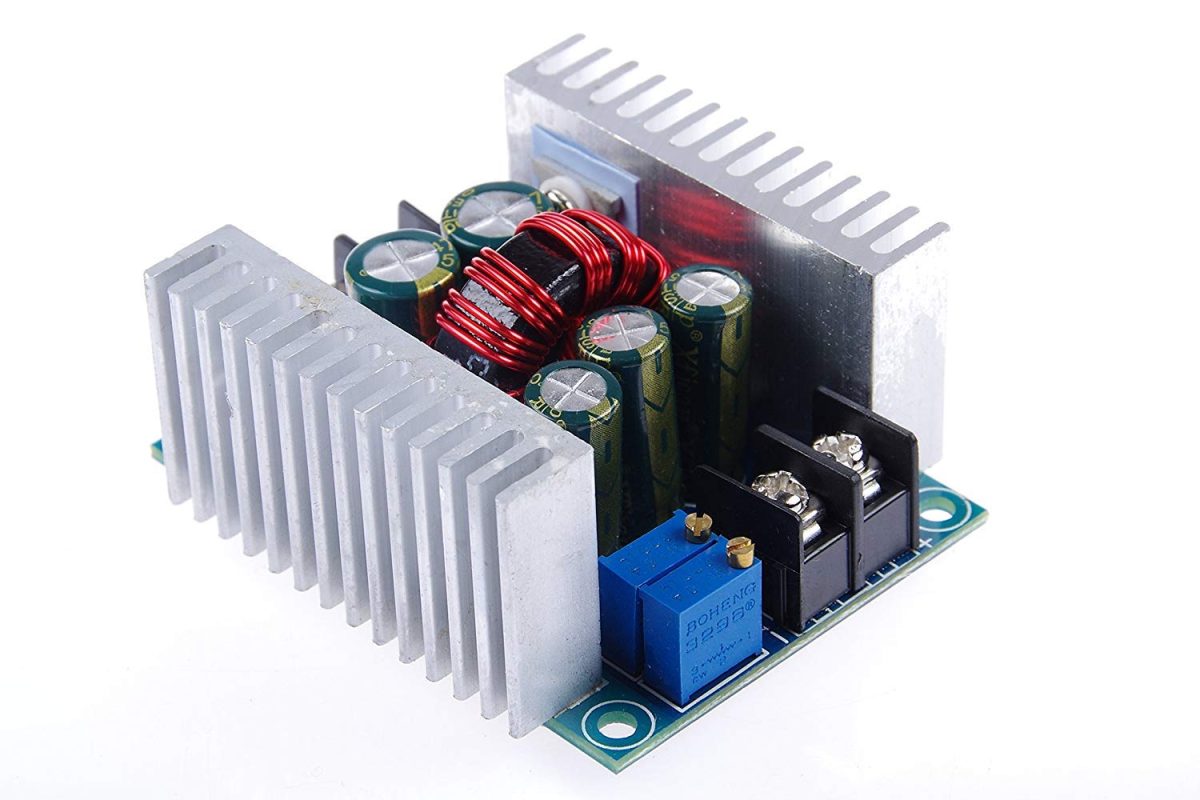

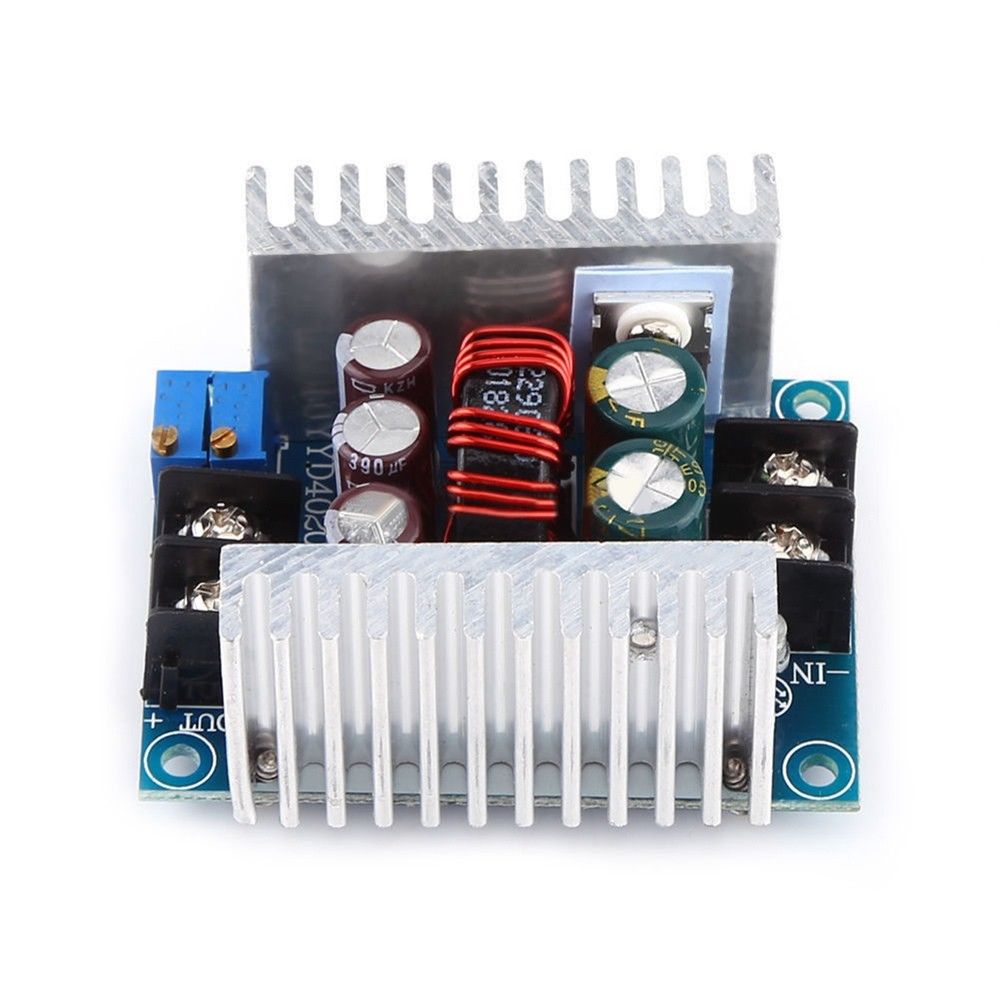

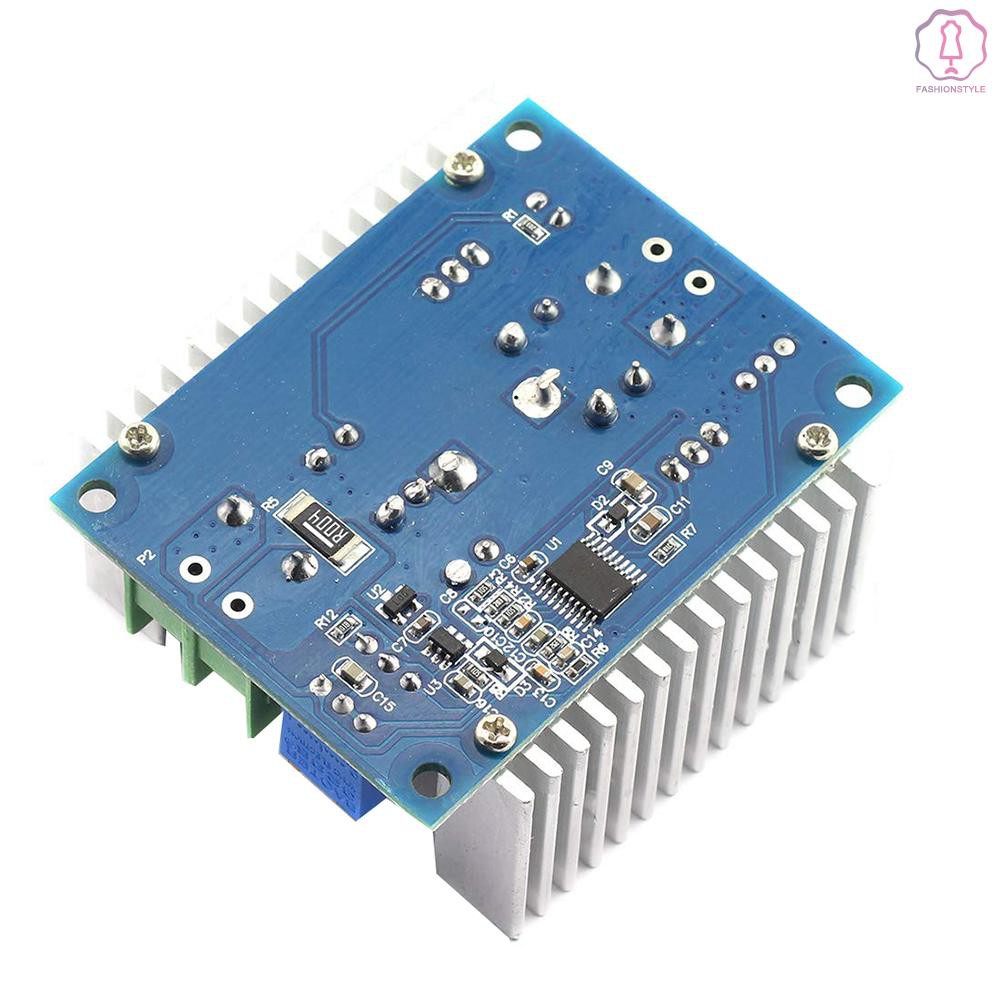

DC-DC Buck Converter Step Down Module High Power Low Ripple Adjustable Power Supply Module
Features:
1.Input voltage: 5-40V
2.Output voltage: 1.2-36V adjustable, 1.2-36V fixed output
3.Output Current: 12A MAX (rated 8A, peak 12A) 100W enhance heat dissipation of up to 200W,
4.Working temperature: -40 to + 85 degrees
5.Operating frequency: 180KHz
6.Conversion efficiency: up to 95%
7.Short circuit protection: Yes (limit current 12A)
8.Over temperature protection: (automatically shut off the output after over temperature)
9.Input Reverse Polarity Protection: None
10.Installation: Four 3mm screws (not included)
11.Connection: Terminals, solder, V-IN is the input, V-OUT is the output, with wire output module housing.
12.Module size: 50mm x 50mm x 18mm
13.Application: This module can be used in batteries, power transformers, DIY adjustable power supply, 24V car T of the power supply, automotive LED lights with power, industrial Buck equipment, 12V t- 3.3V, 12V – 5V, 24V – 5V , 24V -12V, etc.
Features:
1.Input voltage: 5-40V
2.Output voltage: 1.2-36V adjustable, 1.2-36V fixed output
3.Output Current: 12A MAX (rated 8A, peak 12A) 100W enhance heat dissipation of up to 200W,
4.Working temperature: -40 to + 85 degrees
5.Operating frequency: 180KHz
6.Conversion efficiency: up to 95%
7.Short circuit protection: Yes (limit current 12A)
8.Over temperature protection: (automatically shut off the output after over temperature)
9.Input Reverse Polarity Protection: None
10.Installation: Four 3mm screws (not included)
11.Connection: Terminals, solder, V-IN is the input, V-OUT is the output, with wire output module housing.
12.Module size: 50mm x 50mm x 18mm
13.Application: This module can be used in batteries, power transformers, DIY adjustable power supply, 24V car T of the power supply, automotive LED lights with power, industrial Buck equipment, 12V t- 3.3V, 12V – 5V, 24V – 5V , 24V -12V, etc.
Package included:
1 x Buck Converter Module
