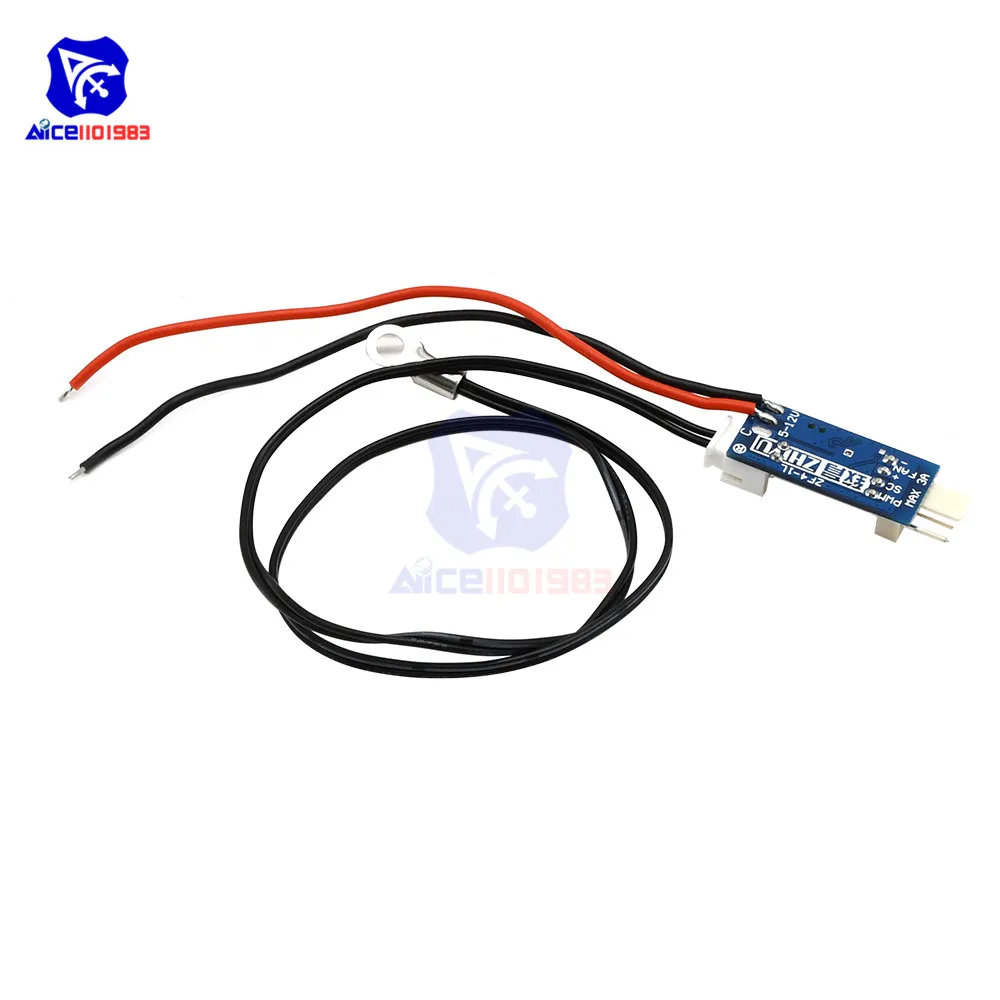

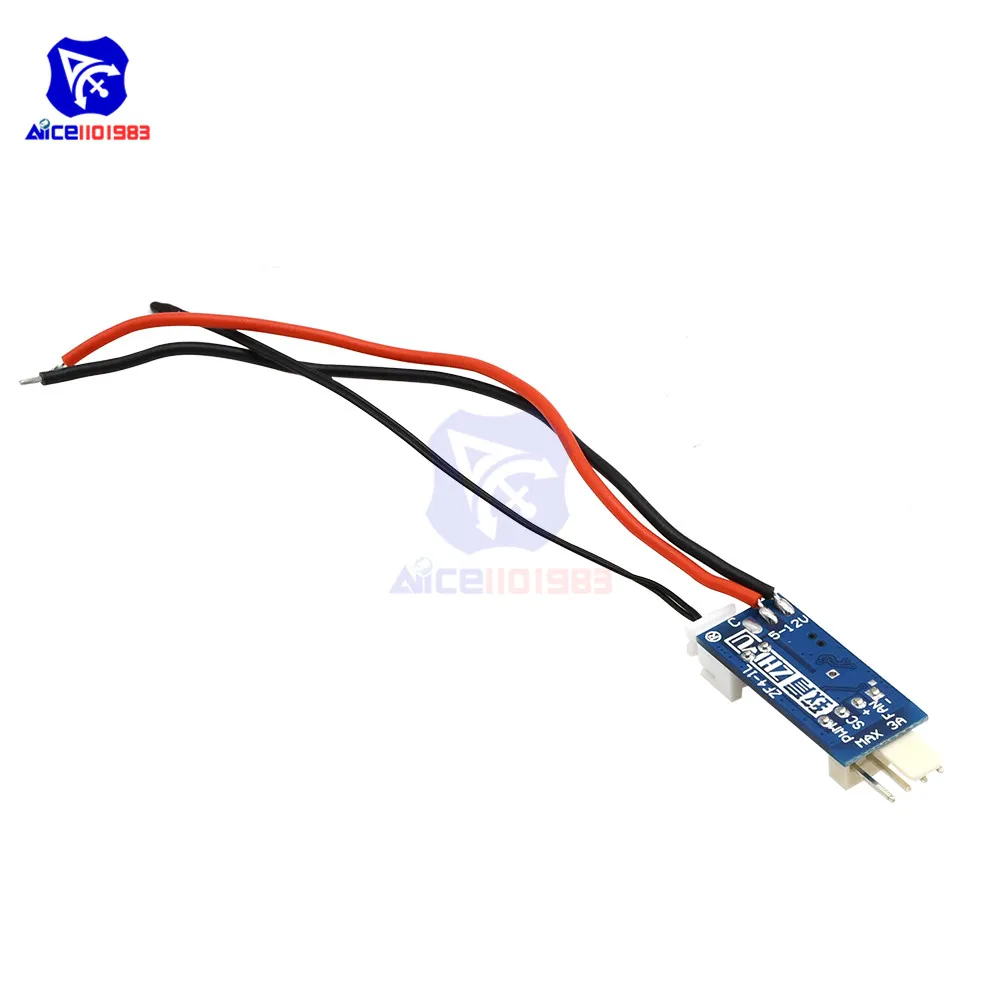

Diymore 4 Wire PWM PC CPU Fan Temperature Speed Controller Governor Automatic Shutdown Module with Sensor Probe DC 12V

🔧 Key Features

🌡️ Automatically adjusts fan speed based on temperature — efficient cooling control
🔁 Compatible with 4-wire PWM fans only (5V or 12V input)
⚡ Controls fan speed via 25kHz PWM signal (Vpp = 3.3V) — no power cutoff or complete fan shutdown

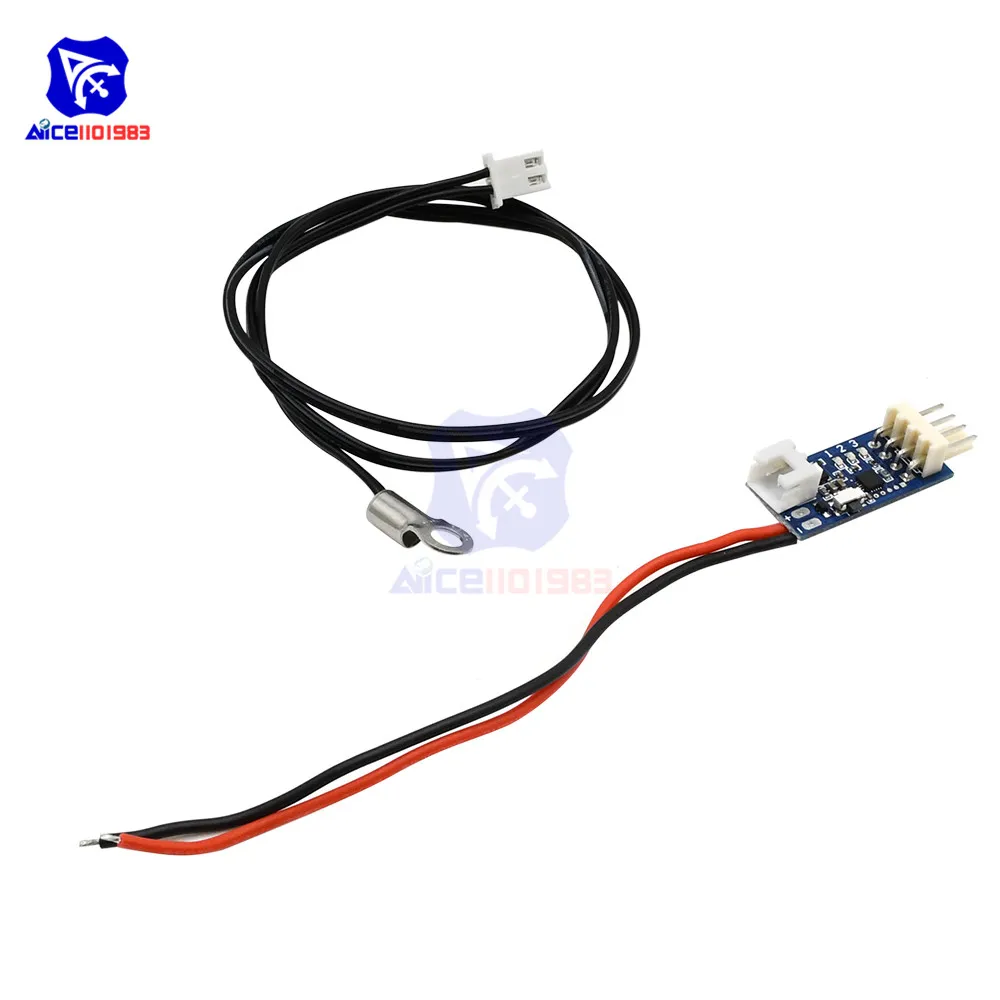

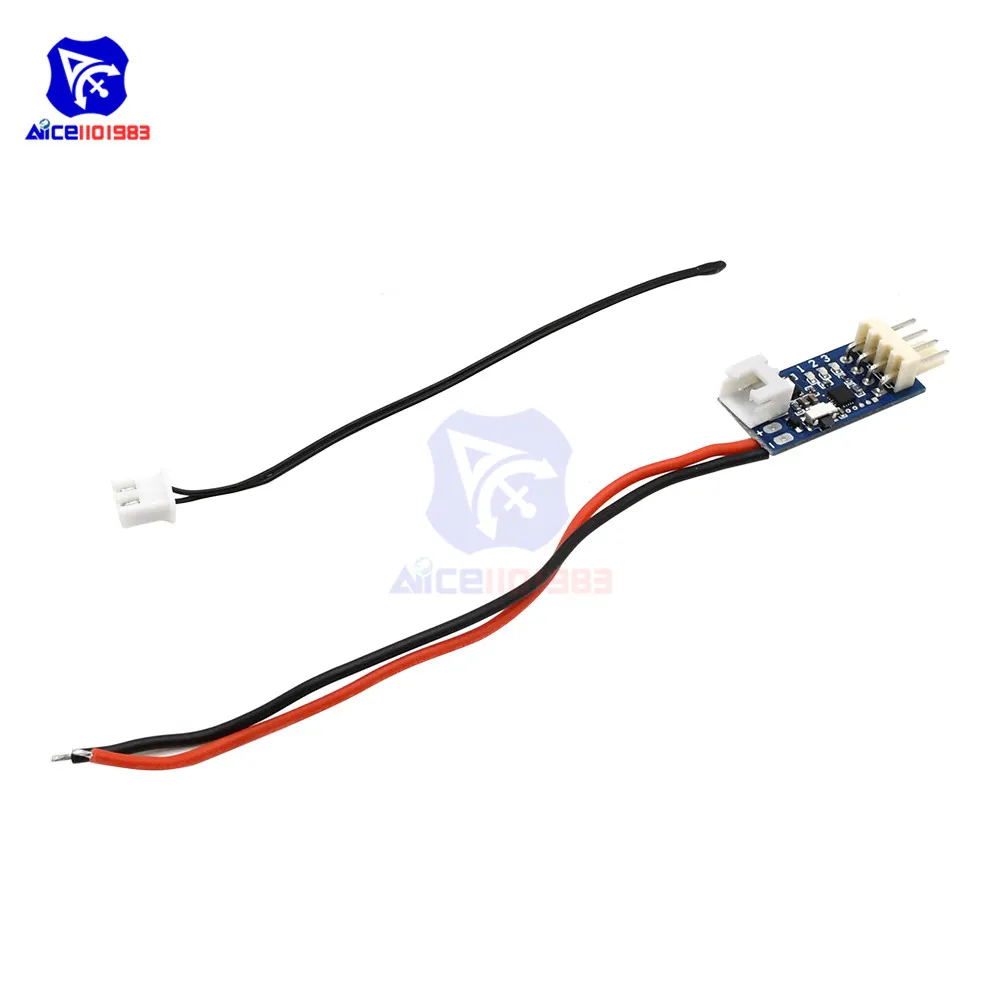

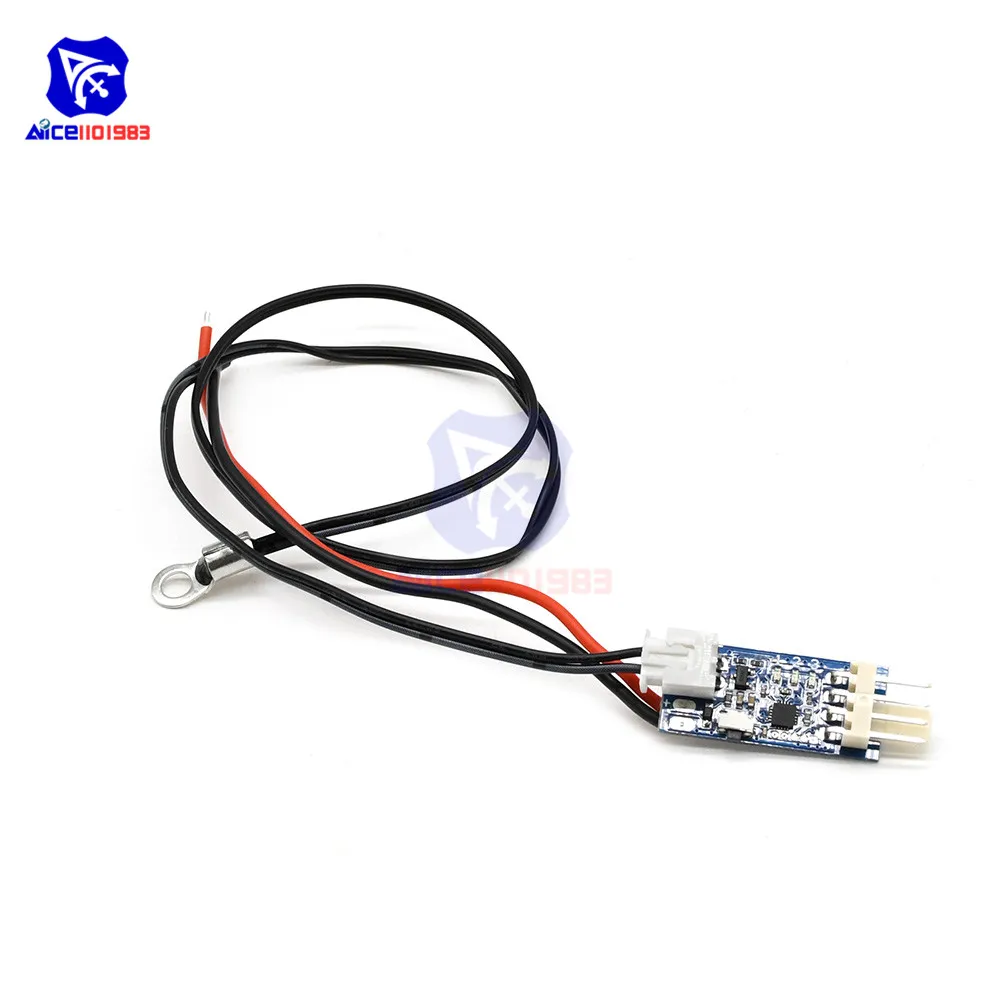

🧵 Includes either 40cm ring or 10cm dot-type temperature sensor probe
📐 Compact board size: 29 × 13 × 9 mm (plus 7mm fan interface extension)
🔌 Handles up to 3A current on-board, expandable with external power wiring
🧊 Operating range: -10°C to 60°C Sensor max temp: 120°C (blackhead), 110°C (ring)
🚦 Factory settings: Po = 20%, Tu = 30°C, Td = 5°C, full speed at 35°C
🔧 Three signal modes supported — forward, reverse, and reverse 80% for custom fan types
🧠 Ideal for CPU cooling, microcontroller-based builds, and compact electronics setups

Add ৳ 3,000 to cart and get free shipping!

DC 5V/12V 4 Wire PWM Computer CPU Fan Temperature Speed Controller Module 40cm Ring/10cm Dot Temperature Sensor Probe

Name: Diymore 4 Wire PWM PC CPU Fan Temperature Speed Controller Governor Automatic Shutdown Module with Sensor Probe DC 12V
Availability: OutOfStock

Note:

1. This controller can only control 5V or 12V standard 4-wire PWM fans. The fan speed is controlled by PWM signals. The actual speed change of the fan is affected by the design of the fan itself. Can not adjust the speed of 2-3 wire ordinary fan, can not cut off the fan power, can not completely turn off the fan.

2. Please note that the power supply voltage must match the fan voltage.

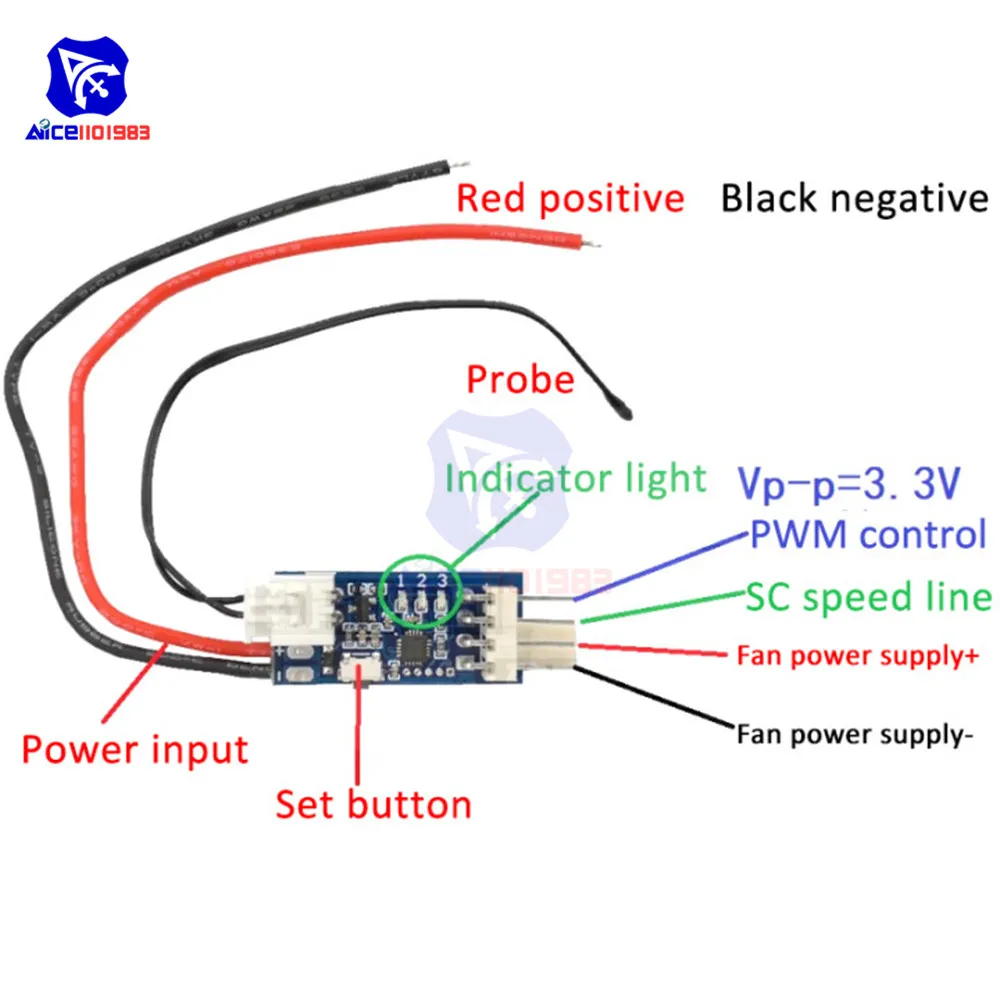

Parameter:

Working voltage: DC 5V or 12V (board working range DC 4.5-16V)

Control the fan current: the plug-in board does not exceed 3A (a larger current fan can be achieved through an external power cord)

Circuit self-consumption: no more than 20mA

PWM signal mode: 25KHZ Vpp=3.3V

Temperature probe model: 50K B=3950

Circuit operating temperature: -10℃ to 60℃

Probe temperature resistance: small blackhead 120℃, ring probe 110℃

Board size: 29mm*13mm*9mm (without interface), the fan interface extends 7mm and can be sleeved with a diameter of 12 heat shrinkable tube

Factory default setting: basic speed control output Po=20%, acceleration temperature Tu=30℃, temperature control interval Td=5℃ (35℃ full speed), signal forward mode.

Note:

1. The pin current on the board cannot exceed 3A

2. The controller does not participate in speed measurement

3. The controller does not control the fan power

Signal mode setting instructions:

Forward mode: used for conventional fans, PWM positive changes, full output value is 100

Reverse mode: used for conventional reverse timing fan, PWM reverse change, full output is 0

Reverse 80% mode: for special reverse timing fans, reverse change, full output is 20

Package Included:

1 * DC 5V/12V PWM Fan Controller Module Temperature Sensor Probe
