Remote Control Solar Circuit Board Human Body Induction 3.2V/3.7V Street Lamp Controller Module Lamp Controller Module

🌞 Product Description – Human Body Induction Solar Lamp Controller (3.2V / 3.7V)

🧠 Smart Motion Detection – Activates high brightness when motion is detected (5–10m range), then dims for energy savings
🎮 Remote-Controlled Functionality – Adjust brightness levels and light modes with ease from a distance
🔆 3-Mode Switch Settings – Choose between induction mode, constant light, or full OFF
🔋 Compatible with 3.2V & 3.7V Lithium Batteries – Works with LiFePO4 and ternary lithium (with protection boards)
🌗 Efficient Lighting Algorithm – Offers 10 seconds of glare when motion is sensed, then transitions to low brightness
🧩 Compact Circuit Design – Lightweight (36g), easy to integrate or store; circuit board size: 26.8×63.8mm
🛡️ Durable Build – Made with high-quality ABS and glass fiber for long-term reliability
💡 Solar Panel Input: 5V–6V – Ideal for solar streetlight upgrades or DIY lighting projects

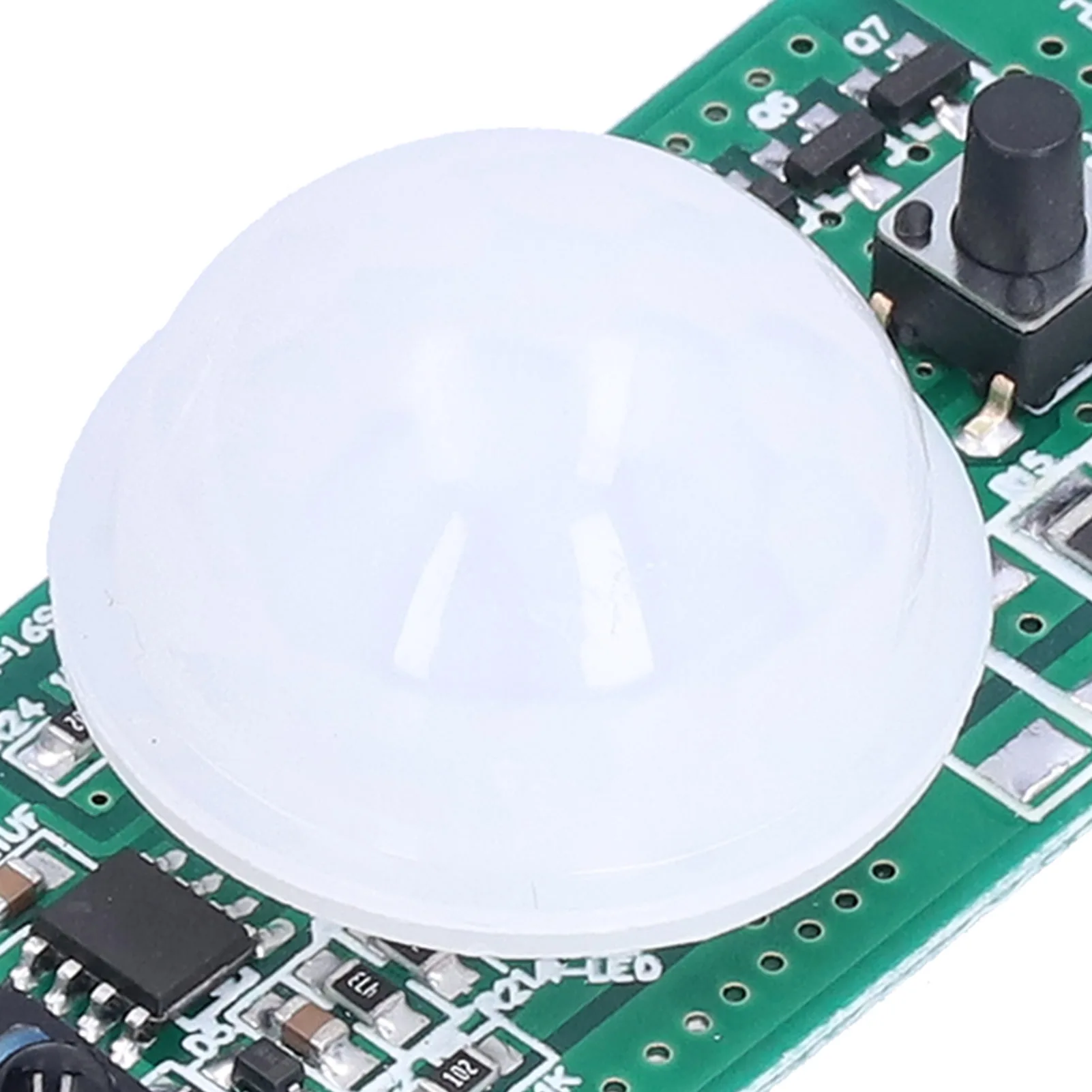

🔧 Infrared Sensing Hood Included – Enhances motion detection accuracy

Add ৳ 3,000 to cart and get free shipping!

Out of stock

Description

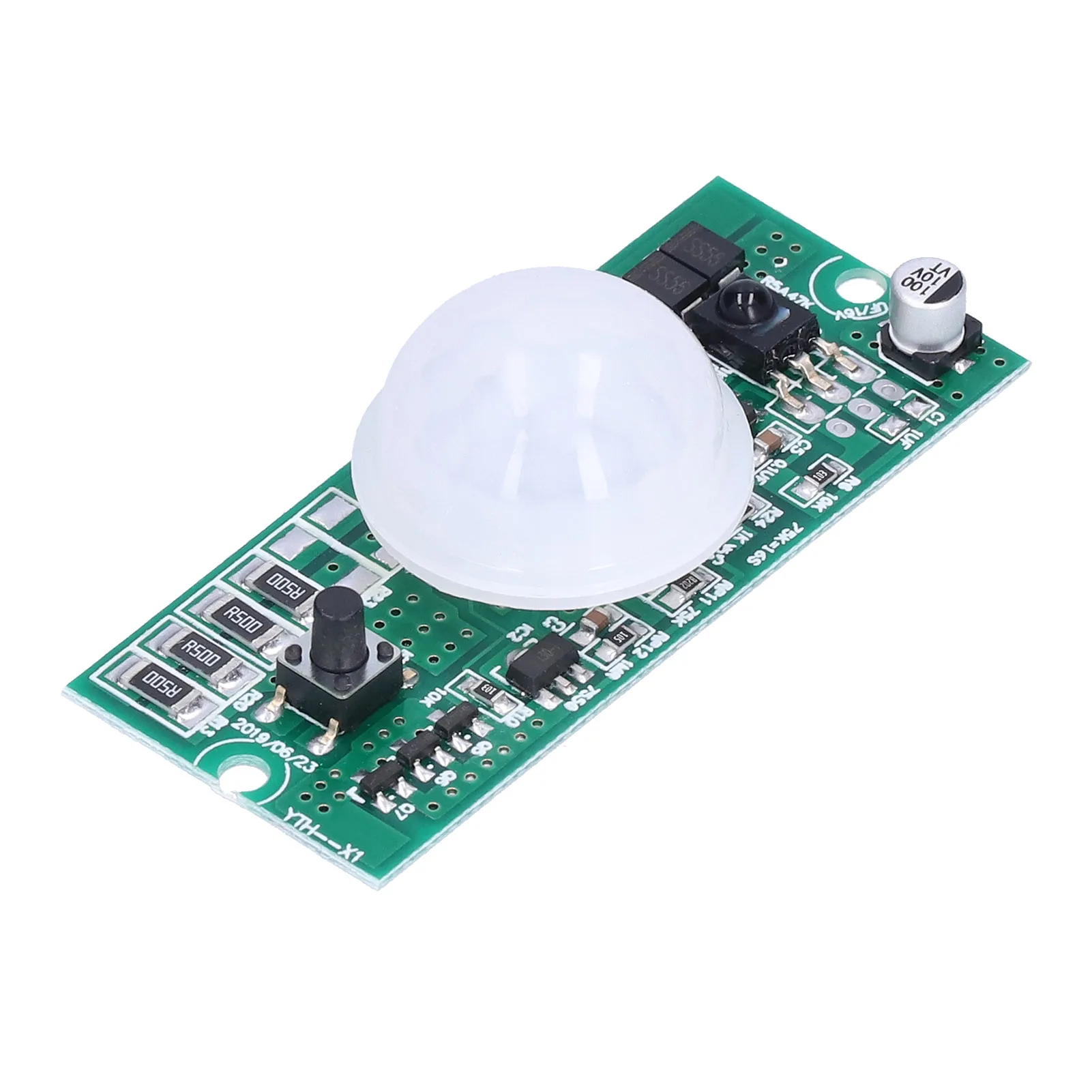

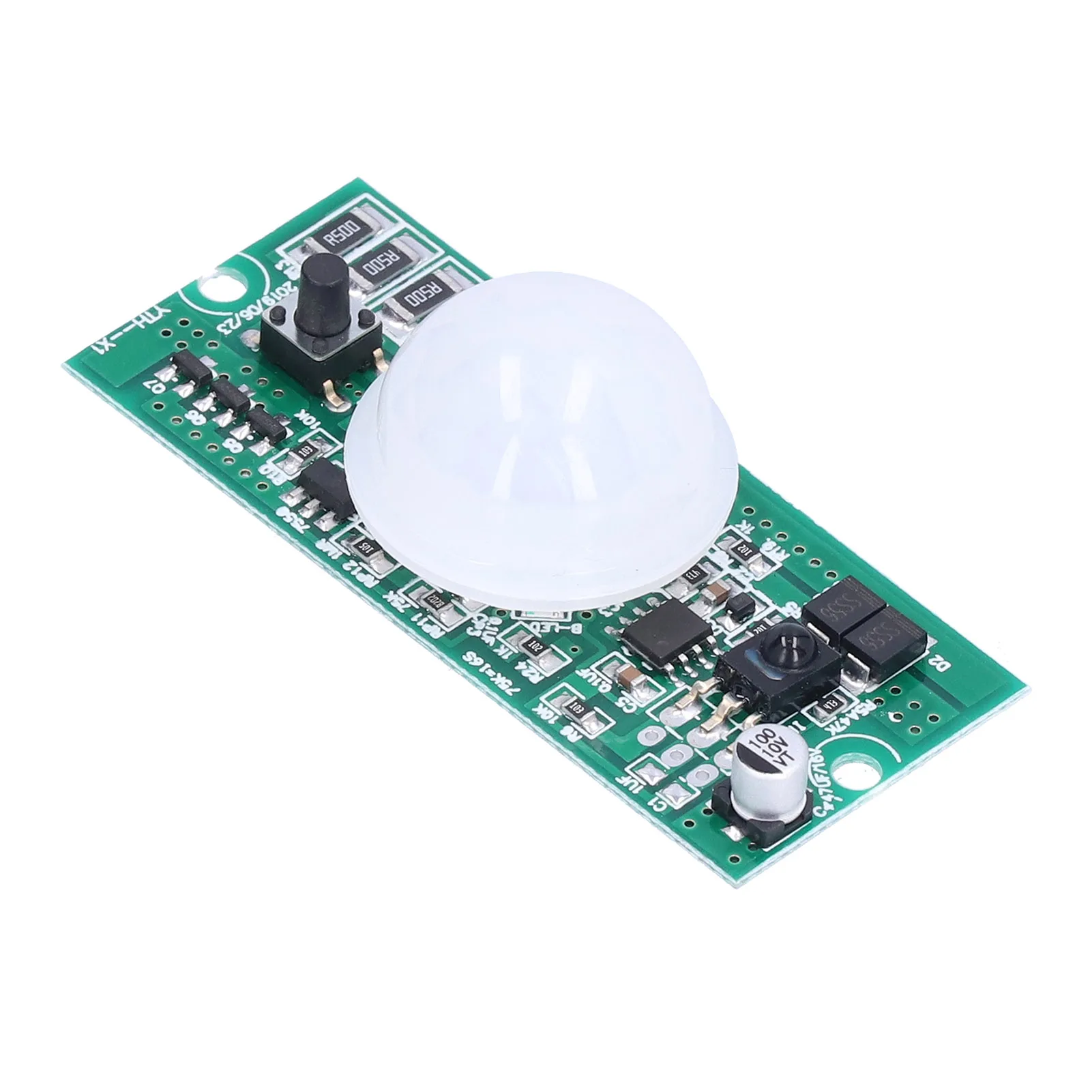

Remote Control Solar Circuit Board Human Body Induction 3.2V/3.7V Street Lamp Controller Module

Feature:

1. The body induction solar circuit board is made of high‑quality glass fiber and ABS materials, , not easy to damage, good performance, and long service life.
2. With human body induction, the induction distance is about 5‑10 meters, can provide you with greater convenience.
3. The brightness of the solar circuit board can be adjusted as required, and the timing can be remotely controlled. The operation is very easy, and can save time and power.
4. The solar circuit board is compact design, easy to carry and store, can provide stable performance. with remote control function, can dimming brightness and light mode.
5. The product is manufactured under strict quality control and standard requirements, and has a high safety factor, so it can be used with confidence.

Specification:

Item Type: Solar Circuit Board
Material: Glass fiber+ABS
Rated Battery Voltage: 3.2V lithium iron phosphate battery / 3.7V ternary lithium battery (the battery needs to have its own protection board)
Remote Control Power Supply: 2 x AAA batteries (Battery Not Included)
Solar Panel Input Power: 5V-6VLamp Output Power: 3VInduction Mode: Induction high light + low light and long light.
Induction Time: About 10 seconds
Sensing Distance: 5-10 m / 16.4-32.8 ft
Switch: 3 gears (induction mode/constant light mode/light off)

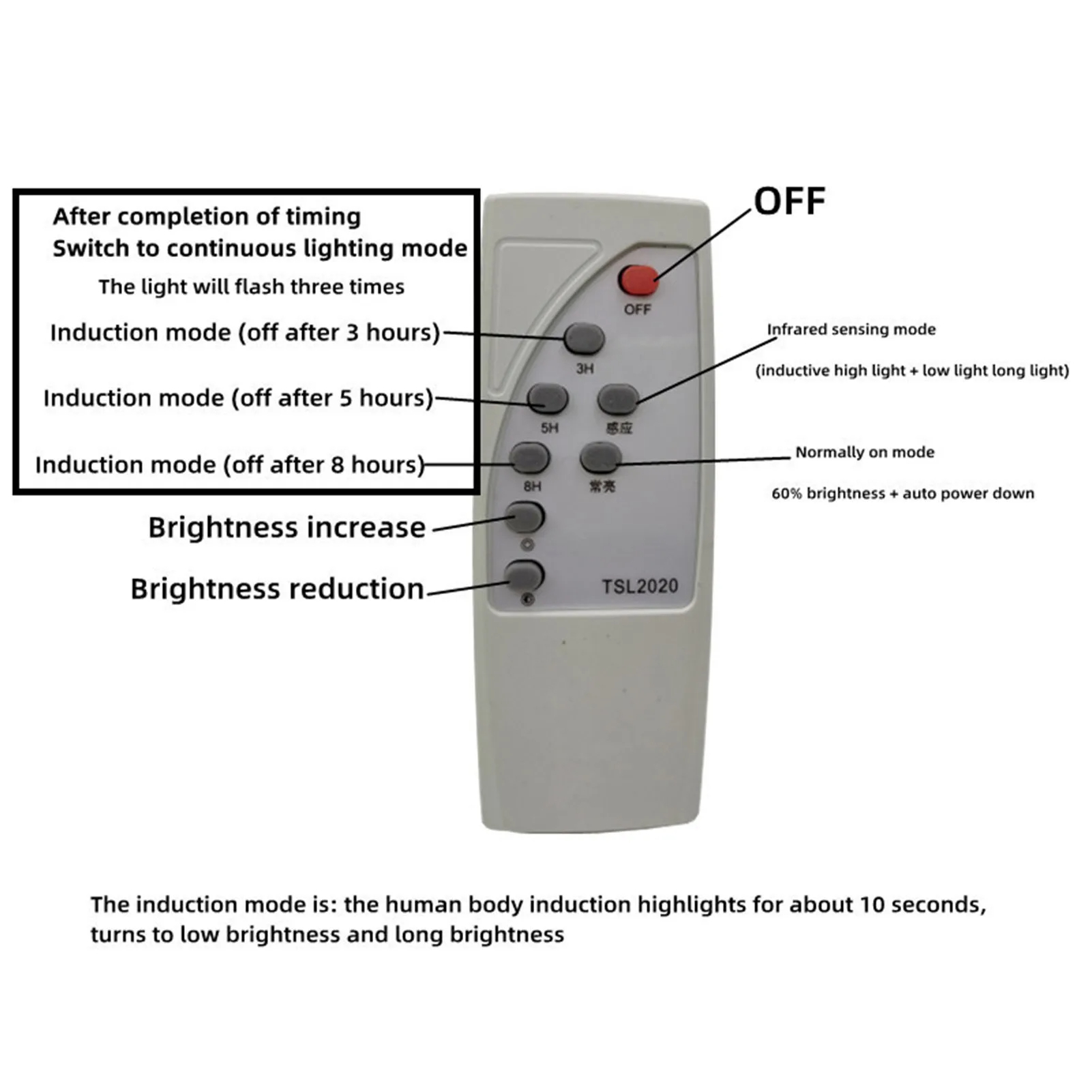

Remote Control Function: Dimming brightness / dimming light mode
The Induction Mode: Human body induction highlights for about 10 seconds, turns to low brightness and long brightness
Weight: Approx. 36g / 1.3oz
Circuit Board Size: Approx. 26.8×63.8mm / 1.1×2.5in
Remote Control Size: Approx. 40x105mm / 1.6×4.1in

How to Use:

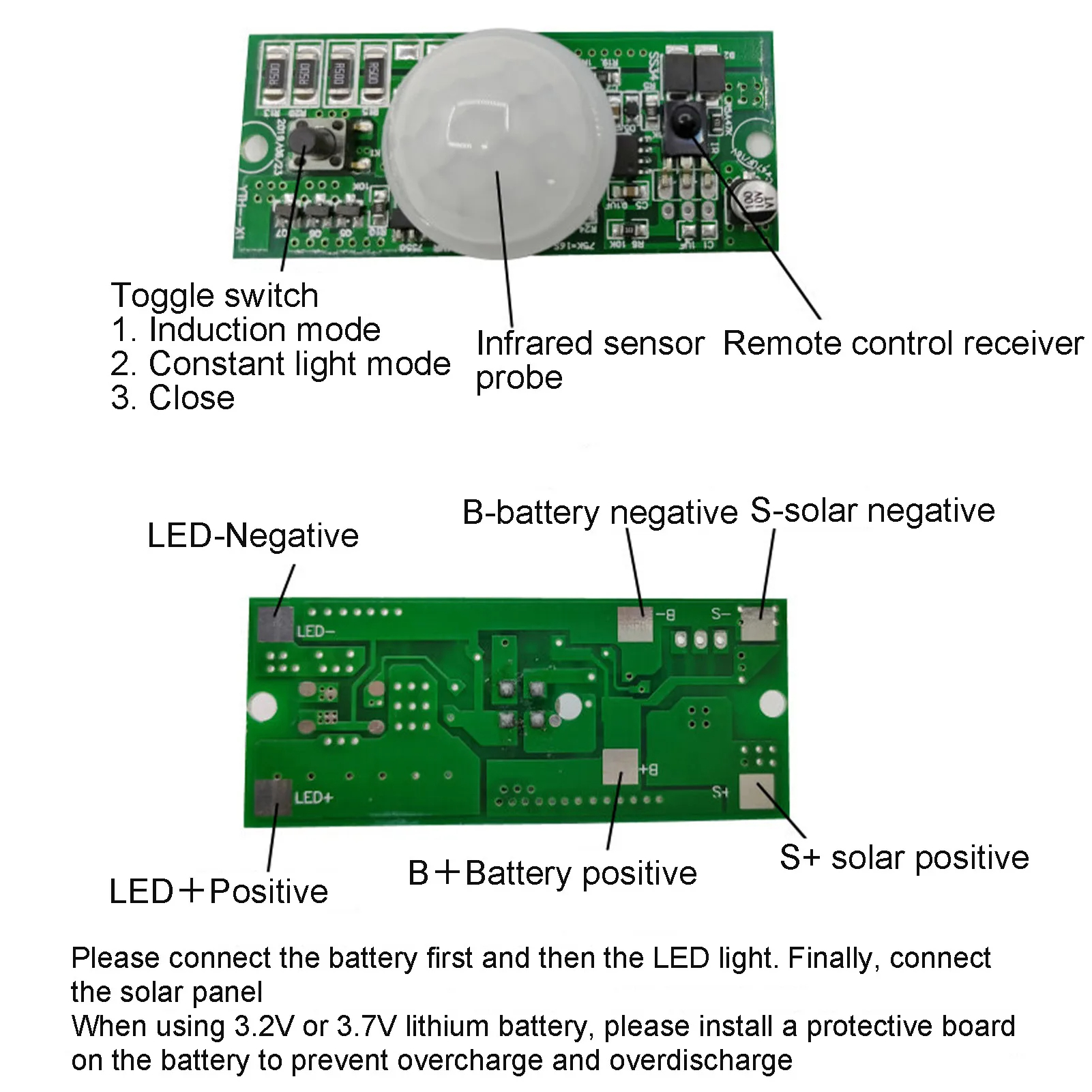

1. Please connect the battery first and then the LED light. Finally, connect the solar panel

2. When using 3.2V or 3.7V lithium battery, please install a protective board on the battery to prevent overcharge and overdischarge

Package List:

1 x Circuit Board

1 x Infrared Sensing Hood

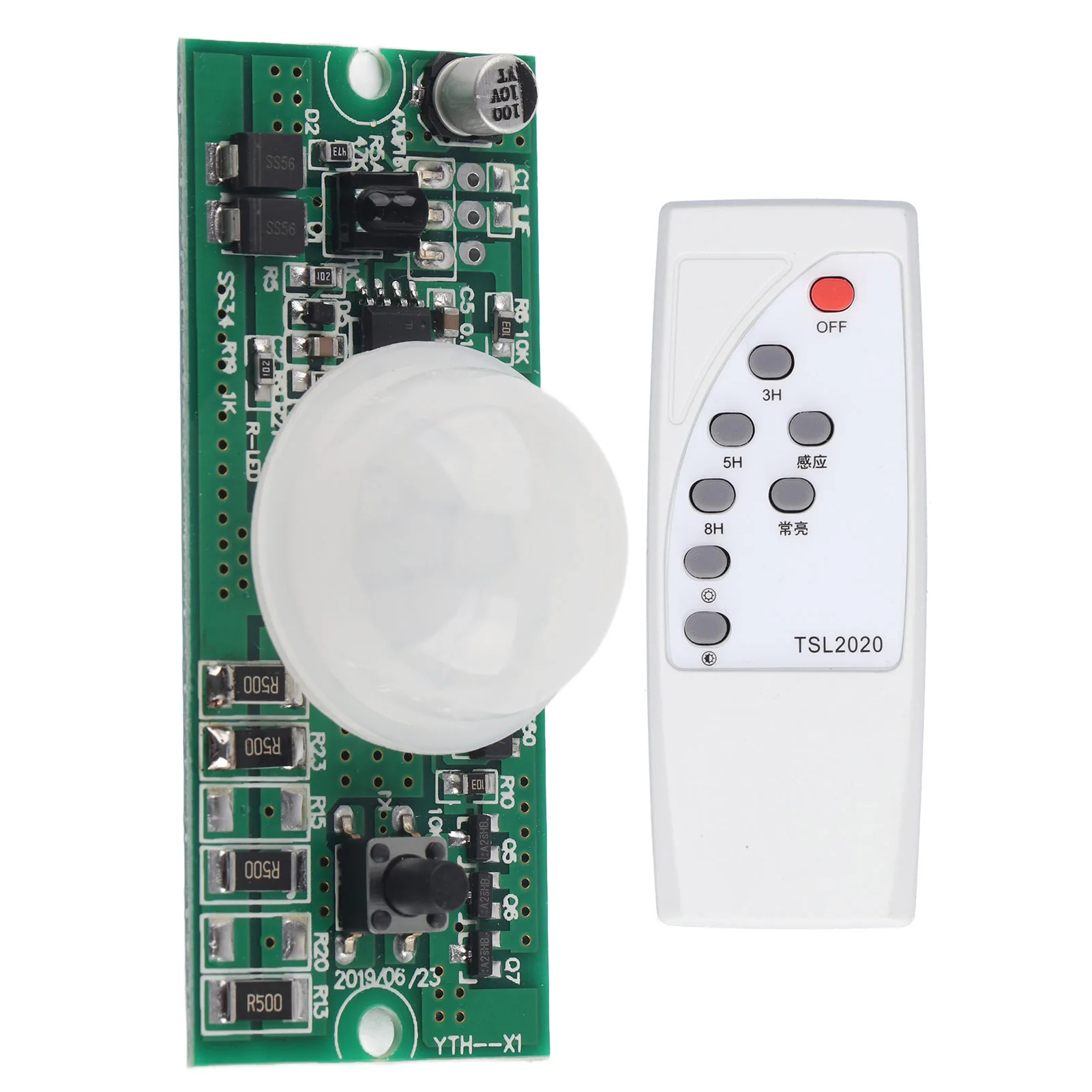

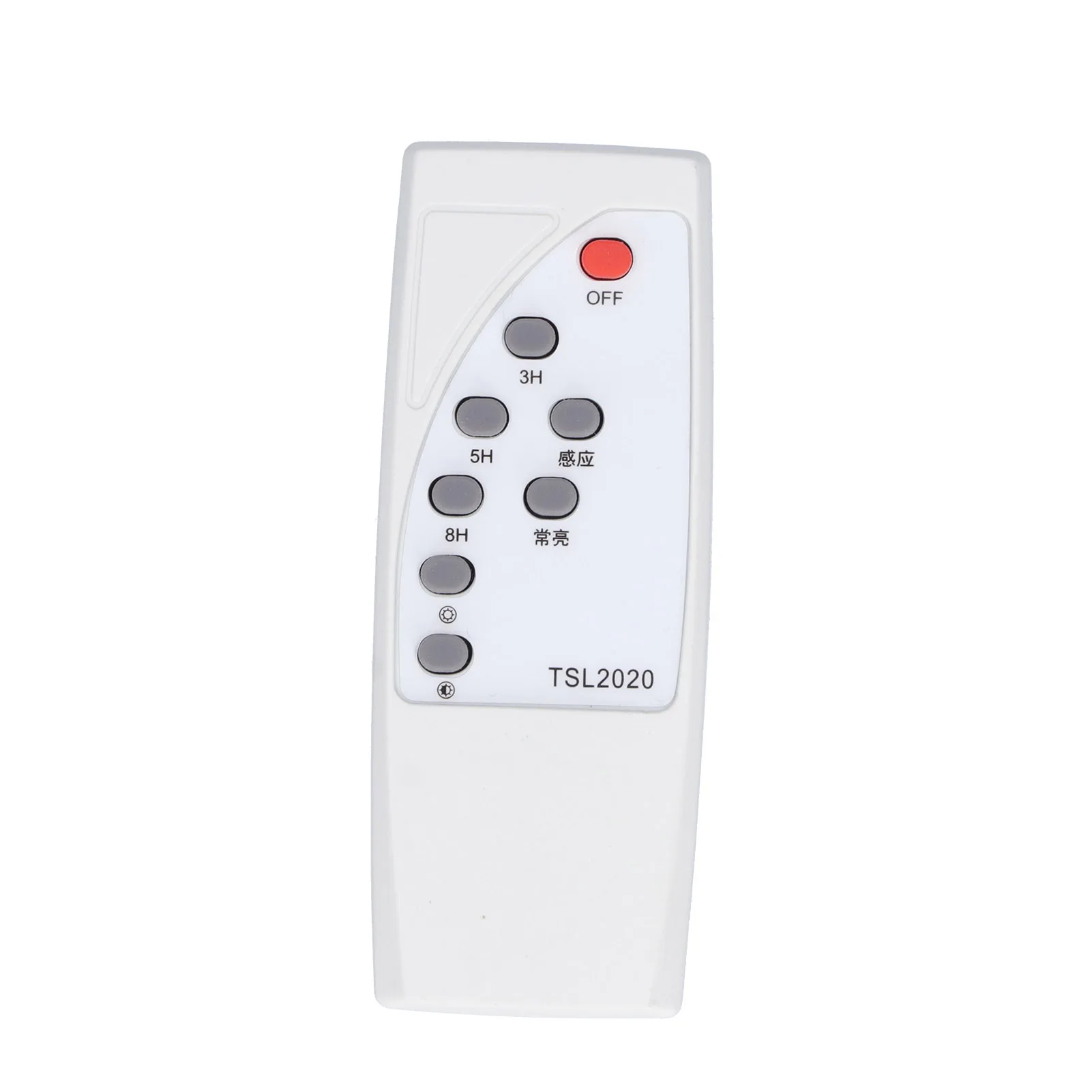

1 x Remote Control (Battery Not Included)

1 x Manual

Note:

This control panel does not have overcharge and overdischarge protection. The battery needs to have its own protection board to connect the battery. Compatible with 3.2V lithium iron phosphate battery and 3.7V lithium battery. It can be used for solar integrated street lamp modification or maintenance.

Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.
