Function:
Overcharge protection, overdischarge protection, short circuit protection, overcurrent protection.
Wiring instructions:
B+ is connected to the positive electrode of the battery;
B- connect to the negative electrode of the battery;
.MB connects to the connection point before battery 1 and battery 2;
.P+ is connected to the positive electrode of the charge/discharge terminal (shared by the charge terminal/discharge terminal);
.P-Connect the negative pole of the charge/discharge terminal (shared with the charge terminal/discharge terminal).
Description:

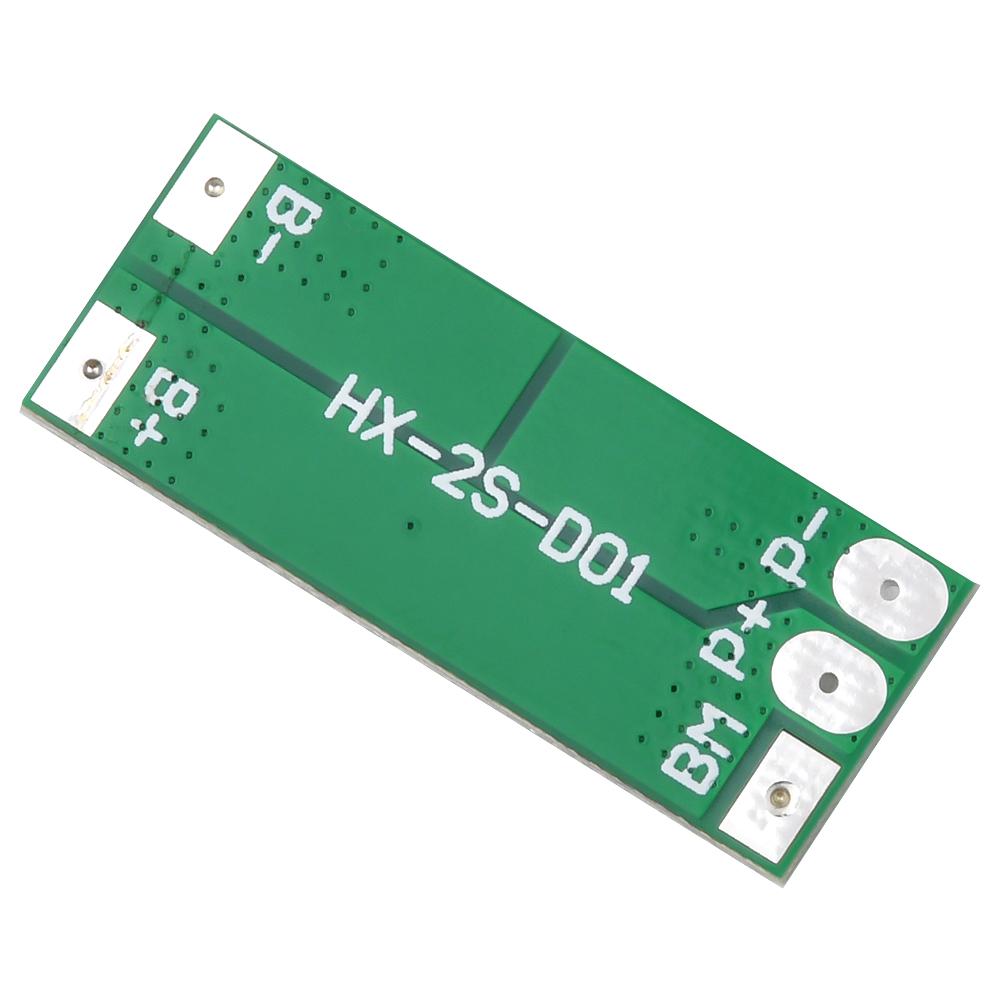

Model: HX-2S-DO1
Size: 41*16*3.5mm
Maximum operating current: 8A
Upper limit instantaneous current: 10A
Overcharge voltage range: 3.65v±0.05v
Over-discharge voltage range: 2.0v±0.05v
Quiescent current: less than 30uA
Charging voltage: 7.2v-8.4v
Short circuit protection: can be protected, delayed self-recovery.
Note:
1.Please allow 1-3mm error due to manual measurement. pls make sure you do not mind before you bid
2.Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!
Package included: 1 × Lifepo4 BMS 2S 10A 6.4V Battery Charge Protection Board
