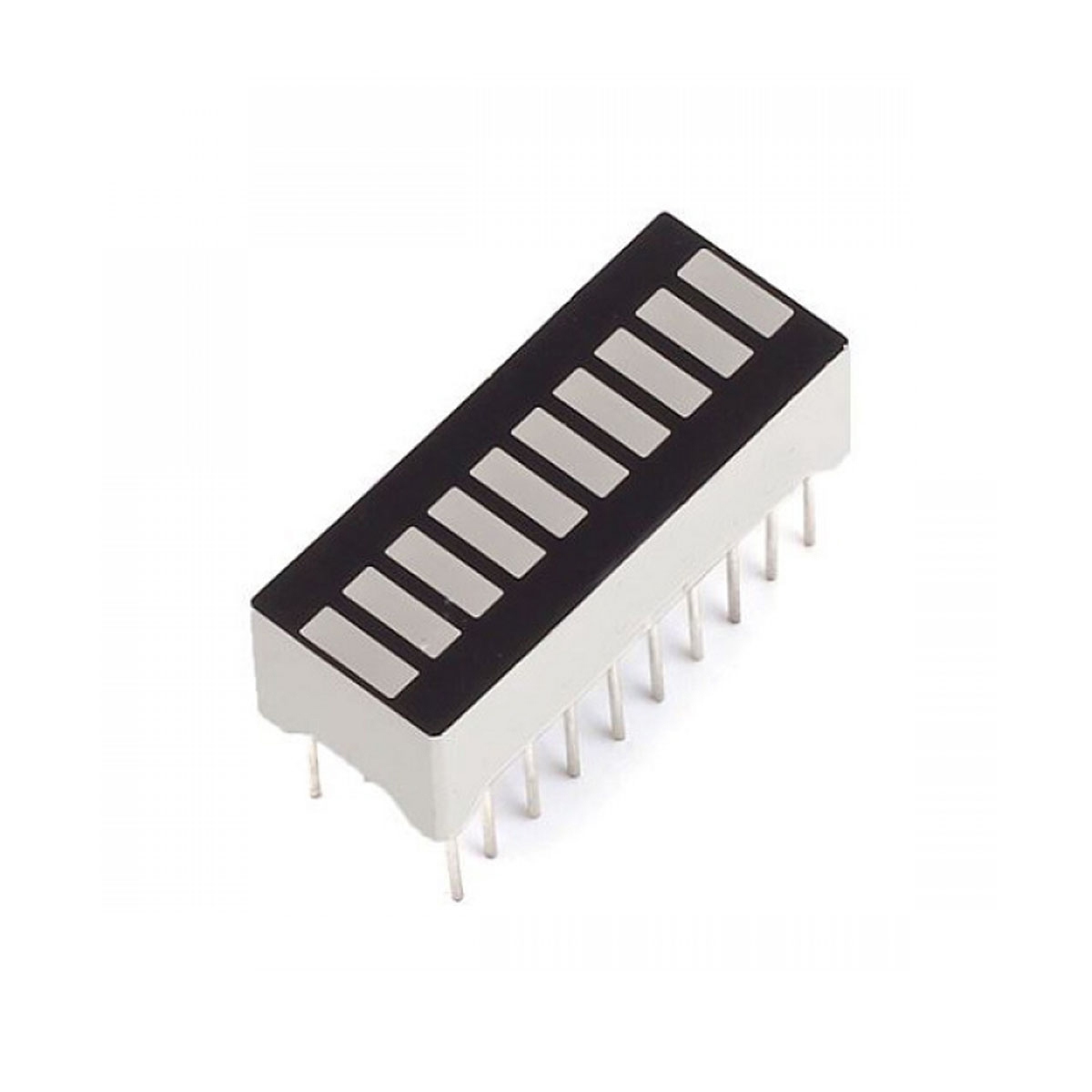

Description: LED Bar Graph Red 10 Digit Segment LED Display Light 25x10x7mm For Battery Indicator
RED 10 Digits Battery Indicator LED Bar Graph Red 10 Segments LED Display Light 25x10x7mm For Batteries Indicators Light Electronics Circuitry & Parts
These 10 segment bar graph LEDs have many uses. With a compact footprint, and a simple hookup, they are easy for prototyping or finished products. Essentially, they are 10 individual red LEDs housed together.
These 10 segment bar graph LEDs have many uses. With a compact footprint, simple hookup, they are easy for prototyping or finished products. Essentially, they are 10 individual blue LEDs housed together, each with an individual anode and cathode connection.
We also carry these in red, and green. Note: The pinout on these bar graphs may vary from what is listed on the datasheet. Rotating the device 180 degrees will correct the change making pin 11 the first pin in line. We have contacted our supplier to correct this mistake in the future.
Features:
- 10 Bar Graph Display
- Low Power Requirement
- Can Be Used With Panel And Legend Mount
- Suitable For Multiplex Operation
- Easy Mounting On P.C.B
- Pb Free Products
- ROHS Compliance
- Gray Face, White Segments
Applications:
- Audio equipment
- Instrument panels
- Digital readout display
- Signal strength display
- Power status display
- Art display
Specifications:
- Forward Current (Per Segment): 25mA
- Max Reverse Voltage: 5v
- 10 segment bar
- Color: Super Bright Red
- Industrial standard size
- Low power consumption
- Categorized for luminous intensity
- Dimension: 25x10x7mm
Package Included:
- 1 X LED Bar Graph Red 10 Segment LED Display Light 25x10x7mm For Radio Battery Indicator
