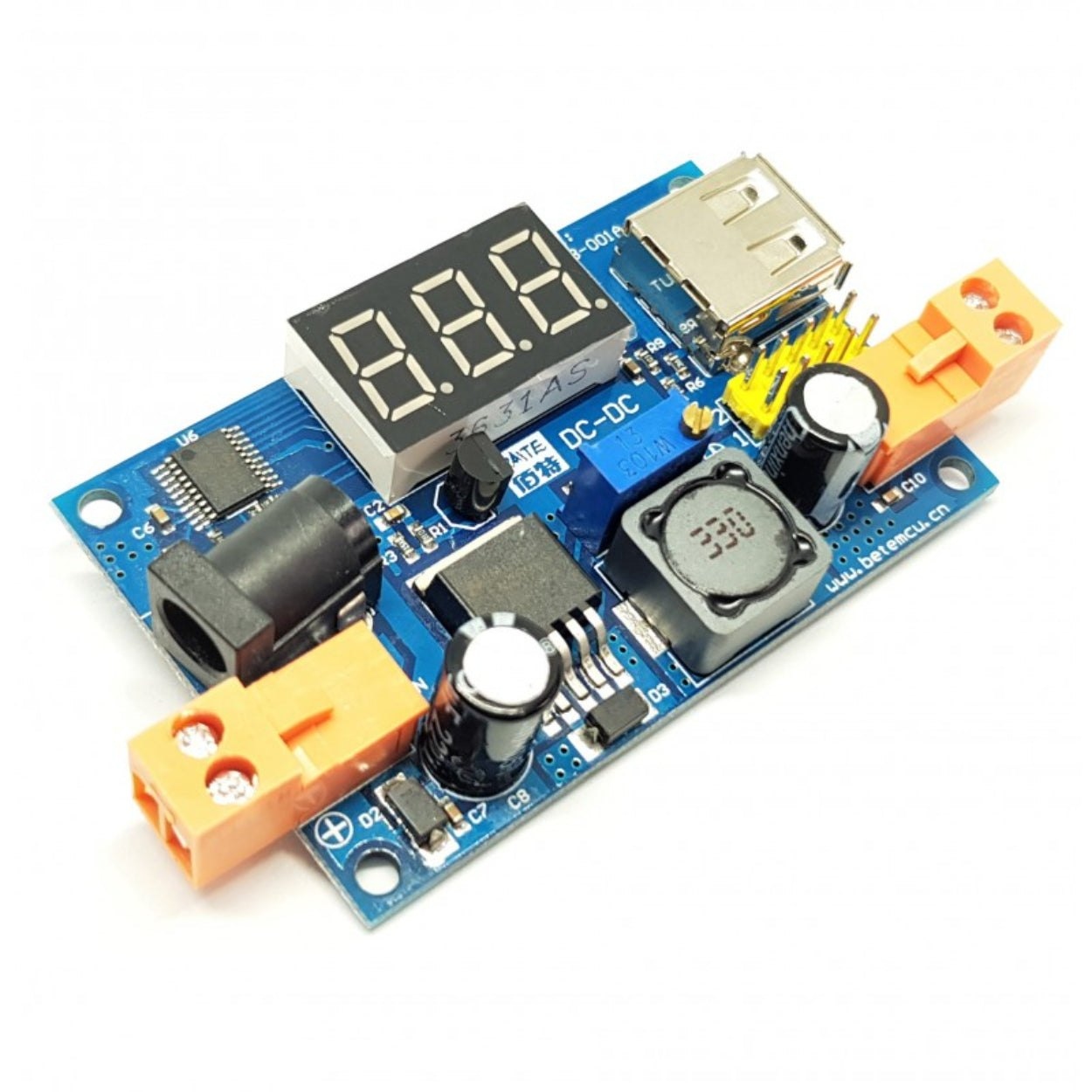

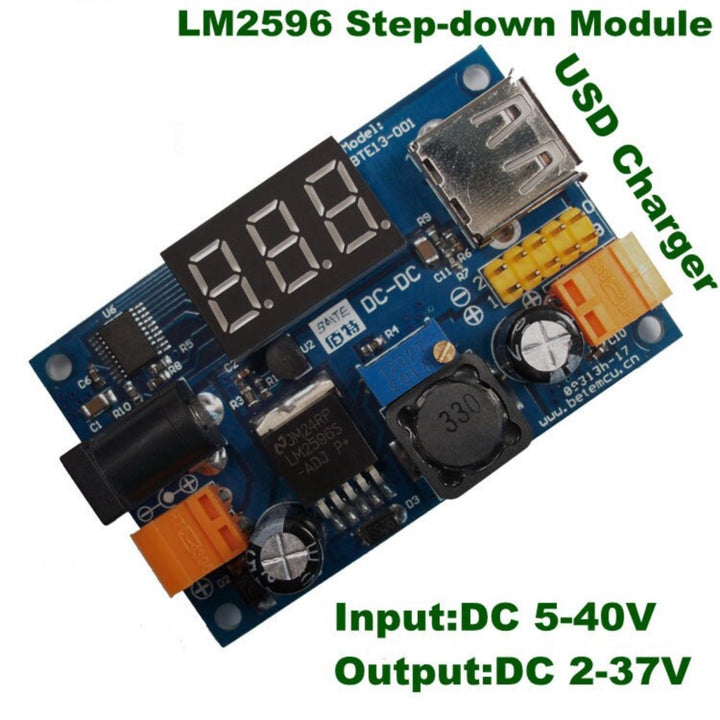

The LM2596 DC Constant Voltage and Constant Current Step-Downย Power Module is a versatile, efficient power supply module that provides adjustable output voltage (1.25V to 37V) and current. It uses the LM2596 buck converter for step-down voltage conversion, offering both constant voltage (CV) and constant current (CC) modes. The module includes an integrated LED voltmeter for real-time voltage monitoring, and its adjustable settings make it ideal for powering LEDs, batteries, and various electronics. It’s suitable for applications requiring precise voltage and current control, with input voltage typically ranging from 4V to 40V.
Technical Details
- Input Voltage: 4.5-40V
- Output Voltage: 1.25-37V (Adjustable)
- Output Current: 2A (3A MAX, Heat-sink needed)
- Efficiency: Up to 92%
- Switching Frequency: 150KHz
- Rectifier: Non-Synchronous
- Module: Non-isolated buck
- Short Circuit Protection: Current limiting, auto-recovery
- Operating Temp: -40ยฐC to +85ยฐC (โค10W)
- Temp Rise: 40ยฐC (full load)
- Load Regulation: ยฑ0.5%
- Voltage Regulation: ยฑ2.5%
- Dynamic Response: 5% in 200ยตs
Features
- Input Voltage Range: 4.5V to 40V
- Adjustable Output Voltage: 1.25V to 37V
- High Efficiency: Up to 92%
- Supports Output Current: 2A (3A MAX with heat-sink)
- Non-isolated Buck Module Design
- Built-in Short Circuit Protection with Automatic Recovery
- Industrial-grade Temperature Range: -40ยฐC to +85ยฐC
- Quick Dynamic Response: 5% within 200ยตs
- Stable Voltage & Load Regulation: ยฑ0.5% and ยฑ2.5%
Applications :
- LED Lighting Power Supplyย – Powers LEDs with stable voltage and current.
- Battery Chargingย – Suitable for charging lithium-ion or LiPo batteries.
- Electronics Projectsย – Provides regulated power for DIY circuits and microcontrollers.
- Electric Vehicle Chargingย – Used in charging systems for EVs.
- Powering Small Appliancesย – Ideal for powering small electronic devices.
Physical Attributes
- L x W x H (mm): 80 x 45 x 15
- Weight (gm) : 28
Package Includes
- 1 x LM2596 DC Constant Voltage and Constant Current with LED Voltmeter Step-Down Power Module
