Description:
This document describes the PZEM-005 multifunction tester model specicications, the multifunction tester is mainly usned to display the battery voltage,battery lever, load current and load resistance.
Function:
1. Measure the battery voltage
Range:2.8~30 V
Resolution:0.1V
Accuracy:2%
2. Measure the battery capacity

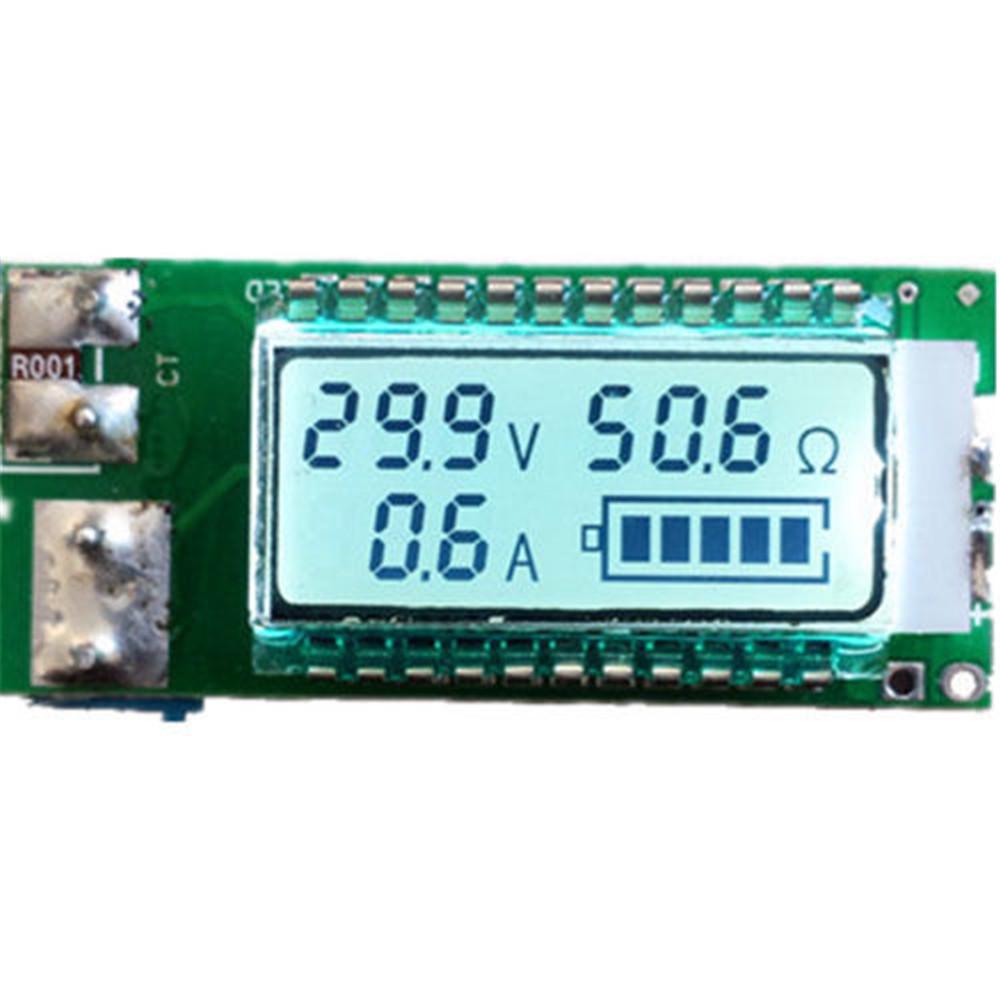

Battery capacity is the battery grid form on the LCD display,a total of five grids.Battery capacity is distinguished by the battery voltage.
Displaying 5 grids stands for full capacity,4 grids for 4/5 capacity,3 grids for 3/5 capacity,2 grids for 2/5 capacity,1 grid for 1/5 capacity,0 grid for 0/5 capacity.
Can be set the full capacity 2.9~30.0V,the exhausted 2.8-29.9V
3. Measure the current
Range:0~10.0A
Resolution:0.1A
Accuracy:2%
4. Measure the resistance of the load
Range: 0 999 ,when over 999 display “oL”
Resolution:when less than 10 ,resolution is 0.01
when less than 100 resolution is 0.1
when less than 1000 ,resolution is 1 ;
Accuracy:2%
5. Back light
Default off-backlight,you can turn on/off the backlight by button.
Note:
Battery >2.8V
Working temperature: -10’C ~ +40’C
NOTE: It is without the case !
Package Included:
1 * LCD Battery meter
