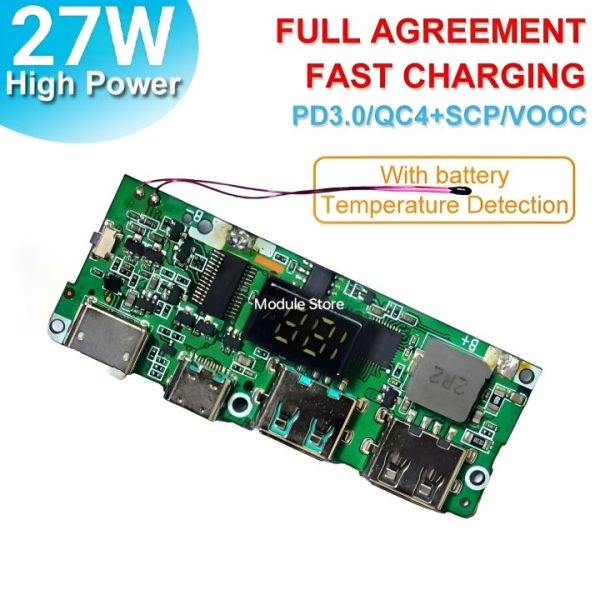

27W Quick Charge PD3.1 USB 3.1 Digital Power Bank Circuit 3in1 Charging Input Output Port LED Display
Specification:
1. Input Port: Type-C / PD 3.1 + Micro USB and iPhone
2. Battery charging current: 12V 2A at PD 5V 2A on Micro USB | 6V 3A max on Lightning port
3. Output Port: Type-C PD 3.1 + USB-3.1 Gen-1 + USB-2
4. Digital display 27 watt power bank circuit
5. Output Power: 12V 2.5A, 9V 3A, 6V 4.5A Max Auto Detect
6. Charging output: PD-12V 2.5A | USB1-5V 2A | USB2-12V 1.5A Max
7. Output is available in battery charging condition
8. The output voltage/current will be more or less according to the charging capacity of the mobile
9. Battery Capacity: 50000mAh Maximum
10. Digital LED display + quick charge indicator
11. Temperature sensor Over heat + over volt + under volt protection
Usage Guidelines::
1. This quick charge circuit works well with Li-Pro batteries. The battery input of all fast charge or quick charge circuits is provided with Li-Pro batteries
2. Because the fully charged voltage of Li-Pro battery is 4.35 volts whereas the fully charged voltage of Li-ion battery is 4.2 volts.
3. For this reason, I say to those who will make it with Li-ion battery, if the battery is less than 4.1 volts, this circuit will not output, so it must be above 4.1 volts.
4. And since it is a fast charging circuit, it will not be difficult to get a quick charge if you input a battery of at least 3000 milliampere.
Package Include:
1 x Power Bank Circuit
