Qc2.0 boost line 9V/12V charging treasure mobile power router usb power supply

Product Description:

ZC006 QC2.0 3.0 9V 12V trigger line –> To output 9V or 12V, you need to use QC2.0 3.0 mobile power or charging head

ZC006 itself does not have a boost function, and can only output 5V when connected to a normal 5V charging treasure.

ZC006 DC output and USB input port with positive and negative direct current, 22AWG thick copper wire, can pass large current

The output voltage and output current of the ZC006 are only related to the output capability of the charging treasure or the charging head.

Output current: only related to the user’s charging treasure, for example: Our steel 8 mobile power can output 12v2.5A, steel 9 can output 12v2A, purple rice 10 charging treasure can output 12V3A, general ordinary QC mobile power can output 12V1.5A or 9V2A, enough for high-power light cats, much stronger than the 5V boost line up to 12V0.7A.
Tmall Elf and other Bluetooth audio to open the loudest will not restart protection and other power shortages, much stronger than the ordinary boost line effect.

Lossless trigger QC2.0 output high voltage, the line head only makes the charging treasure output 9V12V, no boost efficiency loss.

Generally, the 12V router light cat is perfectly compatible with 9V. If 9V can work, the efficiency is much higher than 12V, and the heat is also smaller. It is recommended to recommend 12V if it is confirmed that 9V is not working.

DC output interface specifications: 5.5 tuning fork, compatible with 5.5×2.1, 5.5×2.5 plug

Wire specification: National standard pure copper wire, can pass 3A high current, length is about 1 meter

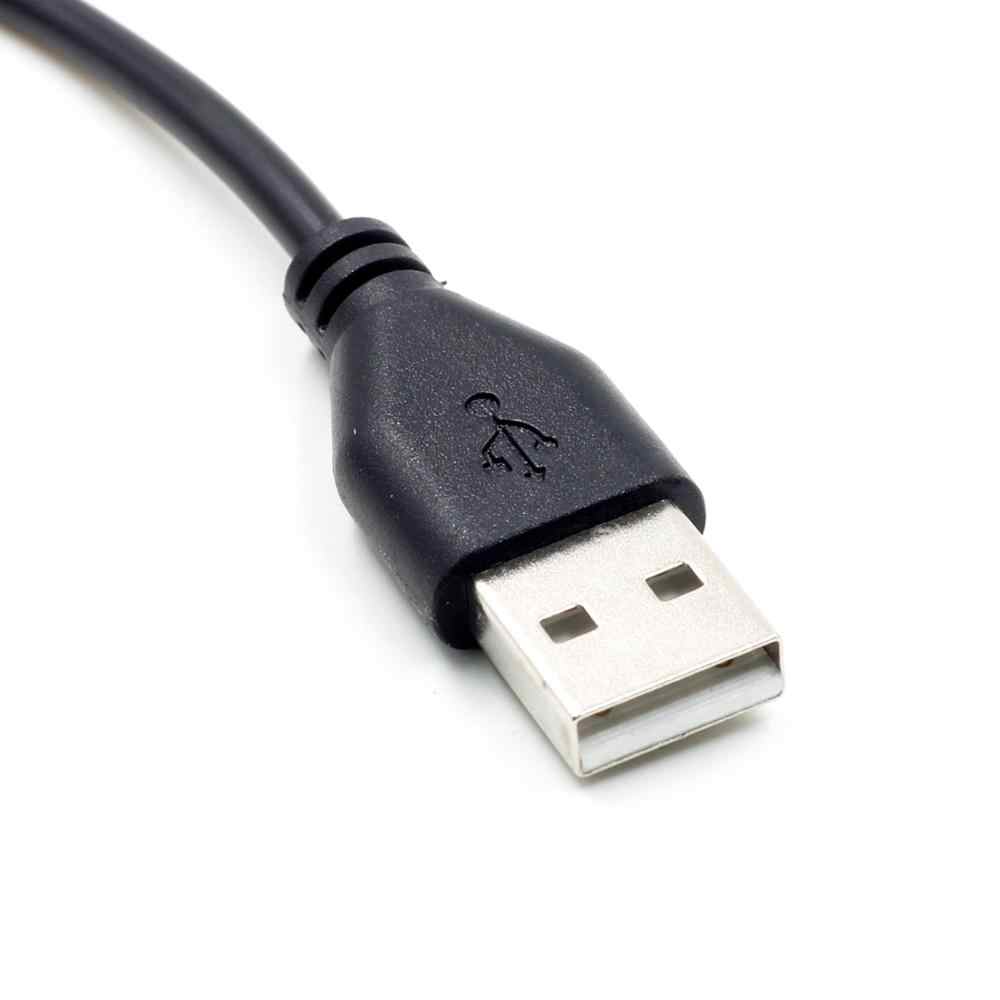

USB specification: Copper contact plug, integrated injection molding, basic three-proof, high strength

Static power consumption: Ultra-low static power consumption 0.3mA ultra-power saving after triggering QC, no LED indicator will not bring light pollution
