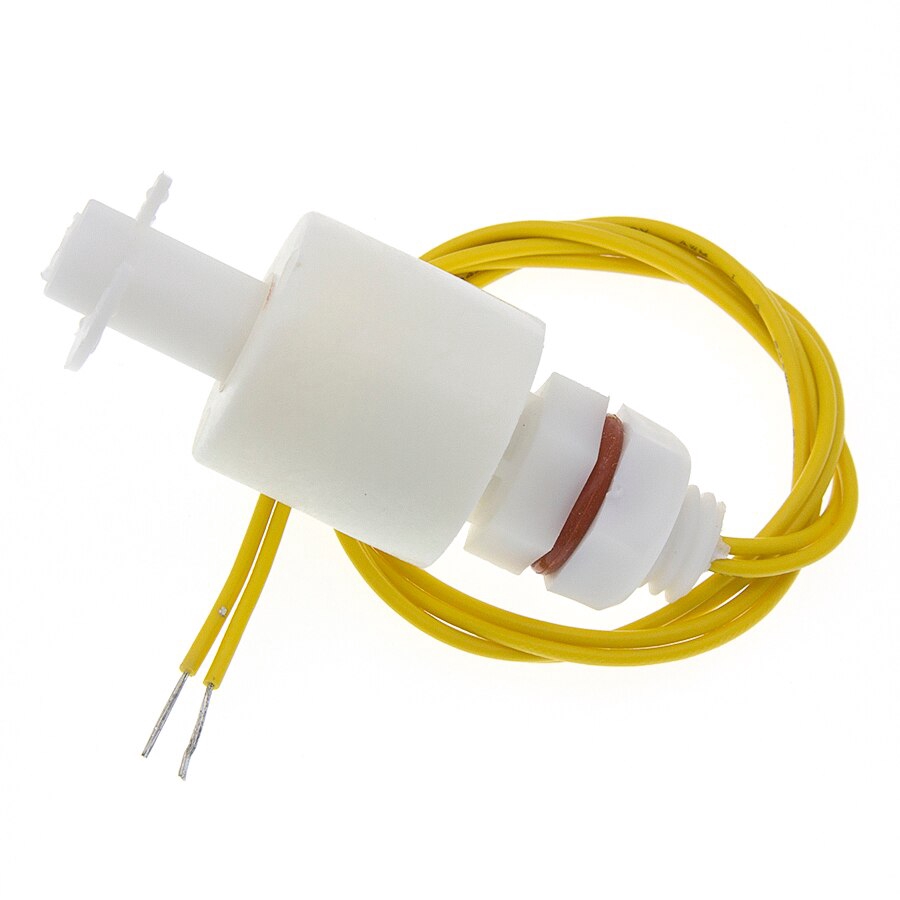

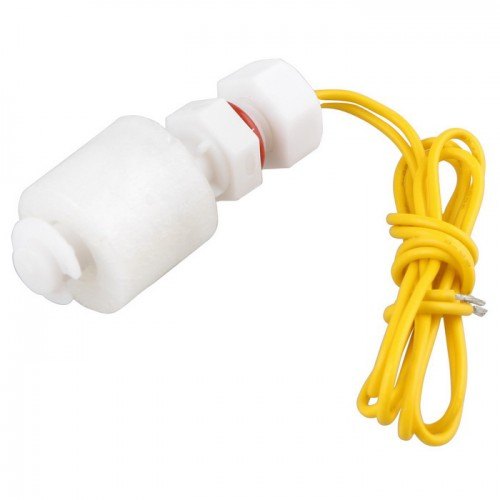

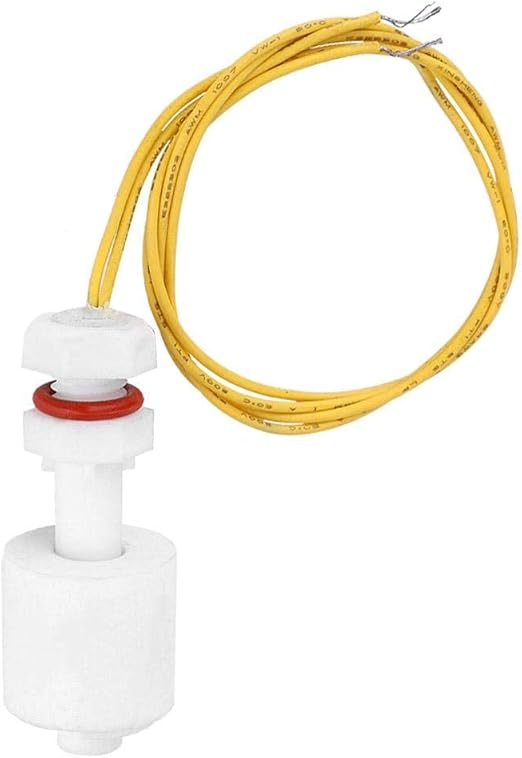

A float switch is a device used to sense the level of liquid within a tank. The switch may actuate a pump, an indicator, an alarm, or other device.

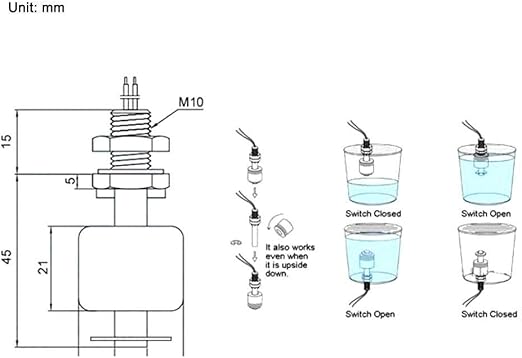

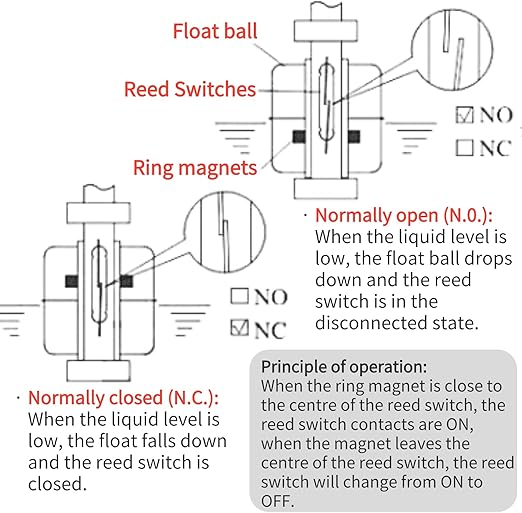

It can be easily converted from normally open to normally close by inverting the float.
Note: Because the current that the switch can carry is much little(0.5A), you must use a relay or contactor when it is connected by a load, relay or contactor are not included here.
Specification:
Product Name : Floating Switch
Contact Rating: 10W(Lowest), 50W(Highest)
Switching Voltage: 100V(Lowest) 220V (Highest)
Switching Current: 0.5A(Lowest) 1.5A(Highest)
Breakdown Voltage: 220VDC(Lowest) 300VDC(Highest)
Load Current: 1A(Lowest) 3A(Highest)
Max Contact Resistance : 100mΩ
Temperature Rating: -10 / +85°C
Float Ball Material: P.P
Float Body Material: P.P
Thread Dia(Approx): 7.5mm / 0.3″
Switch Body Size: 19 x 36mm / 0.75″ x 1.4″(Max D*H)
Cable Length: 36cm / 14.2″
