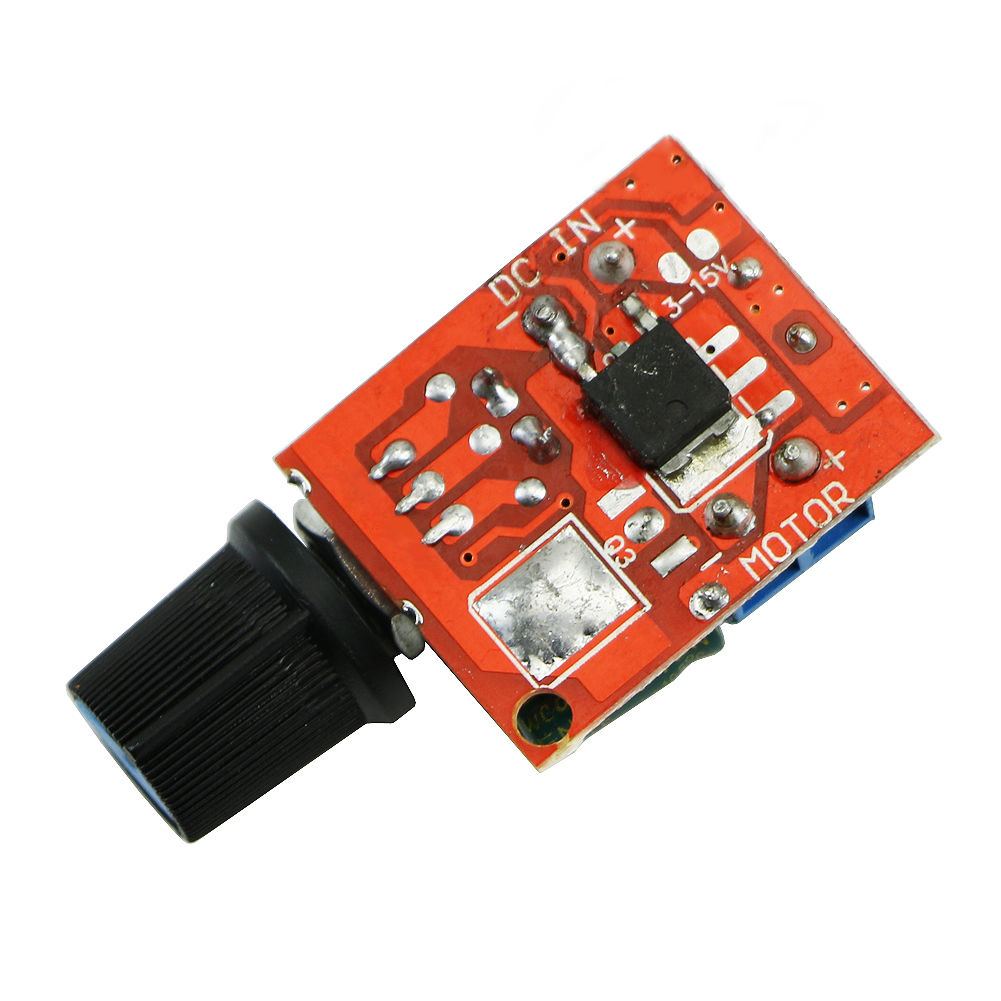

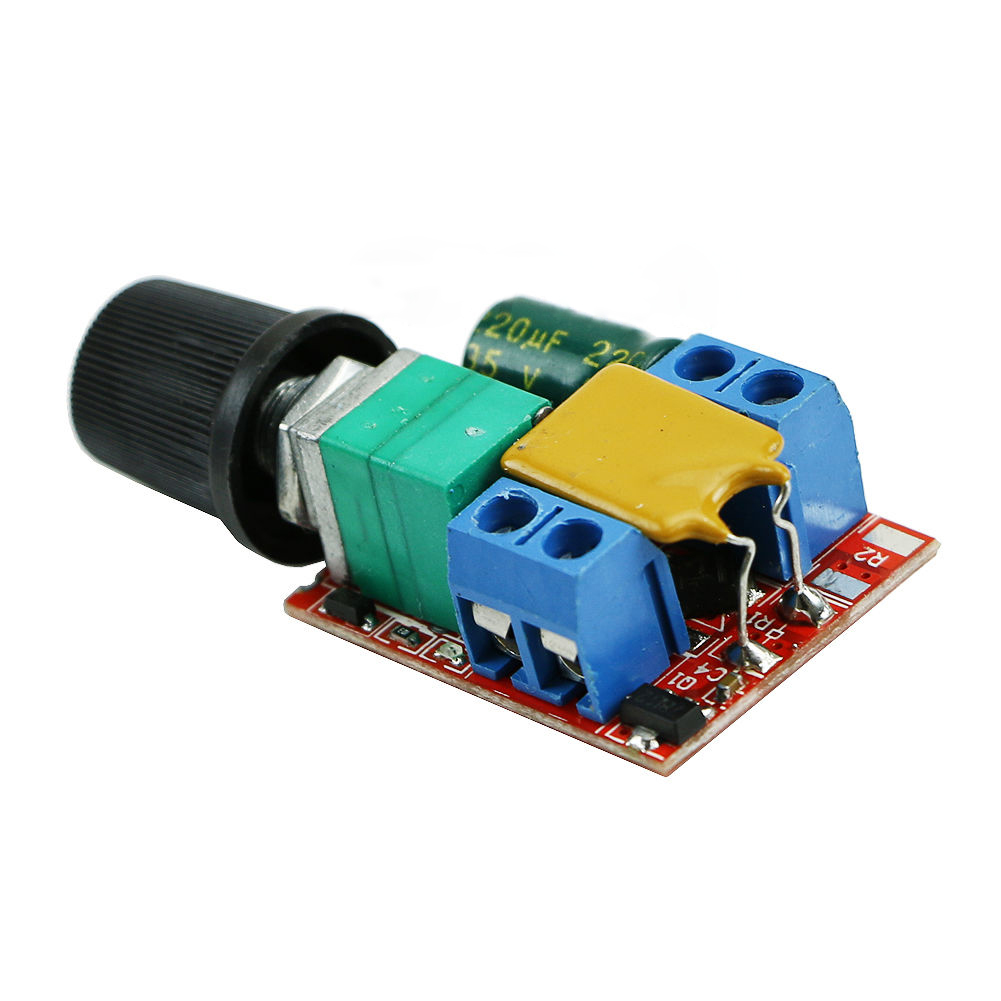

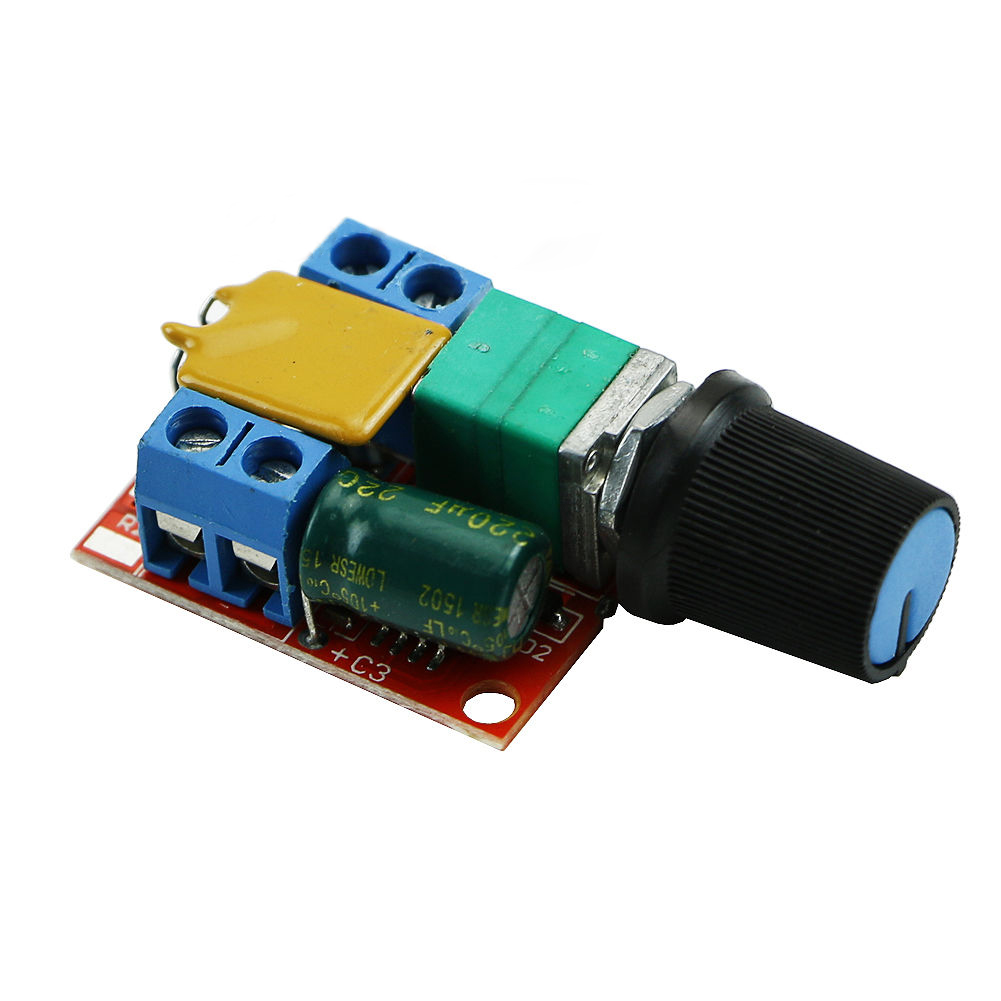

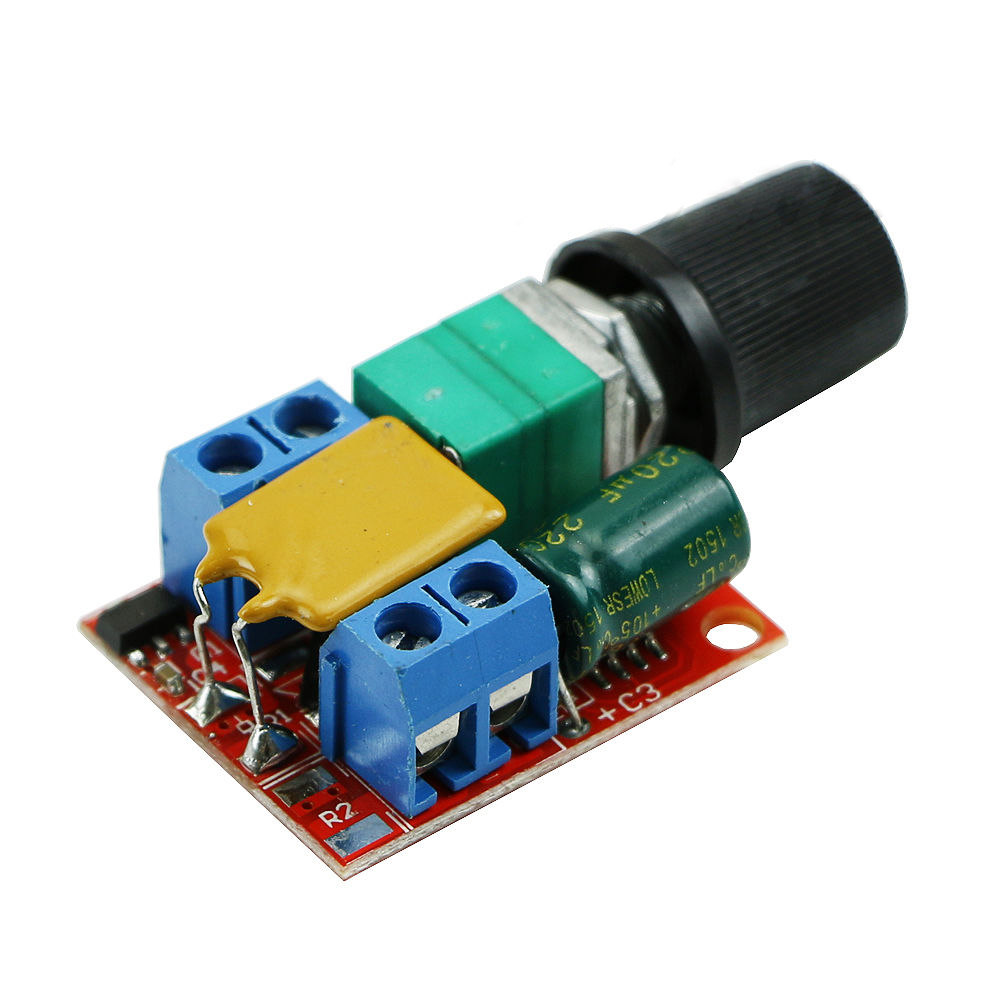

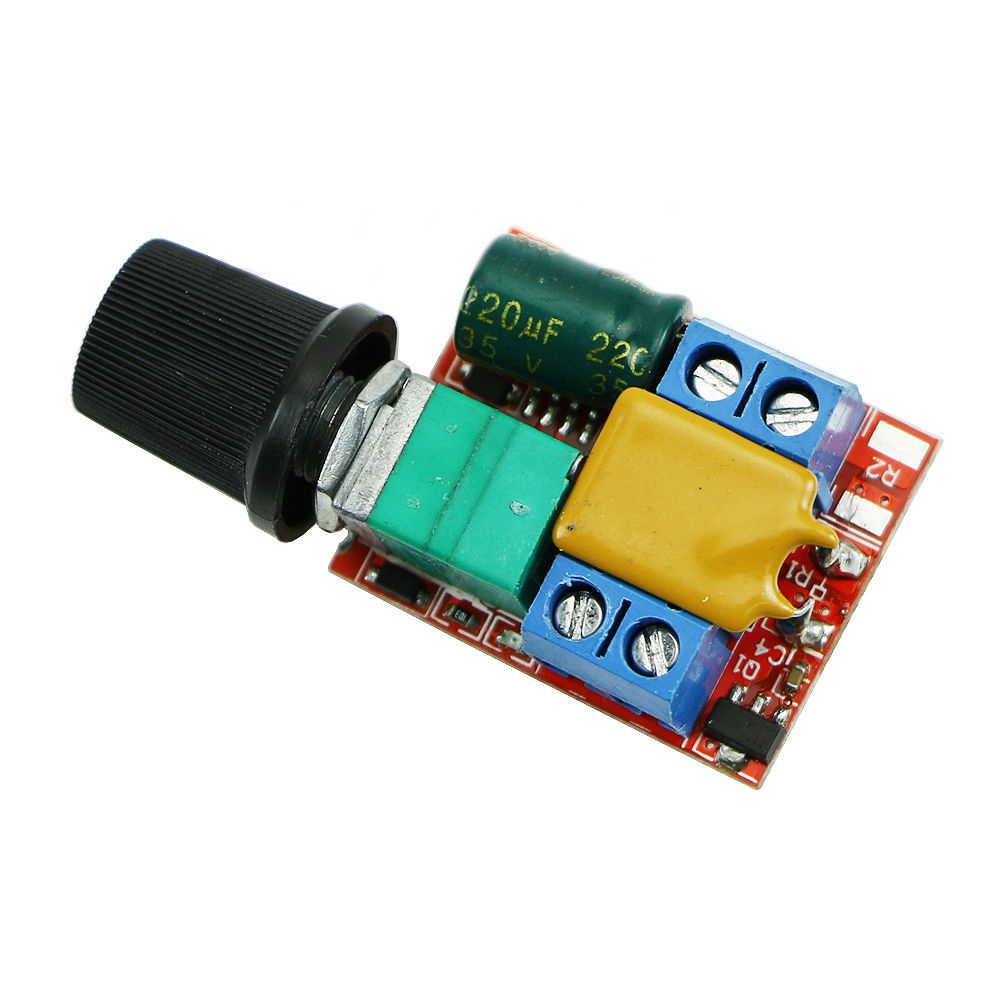

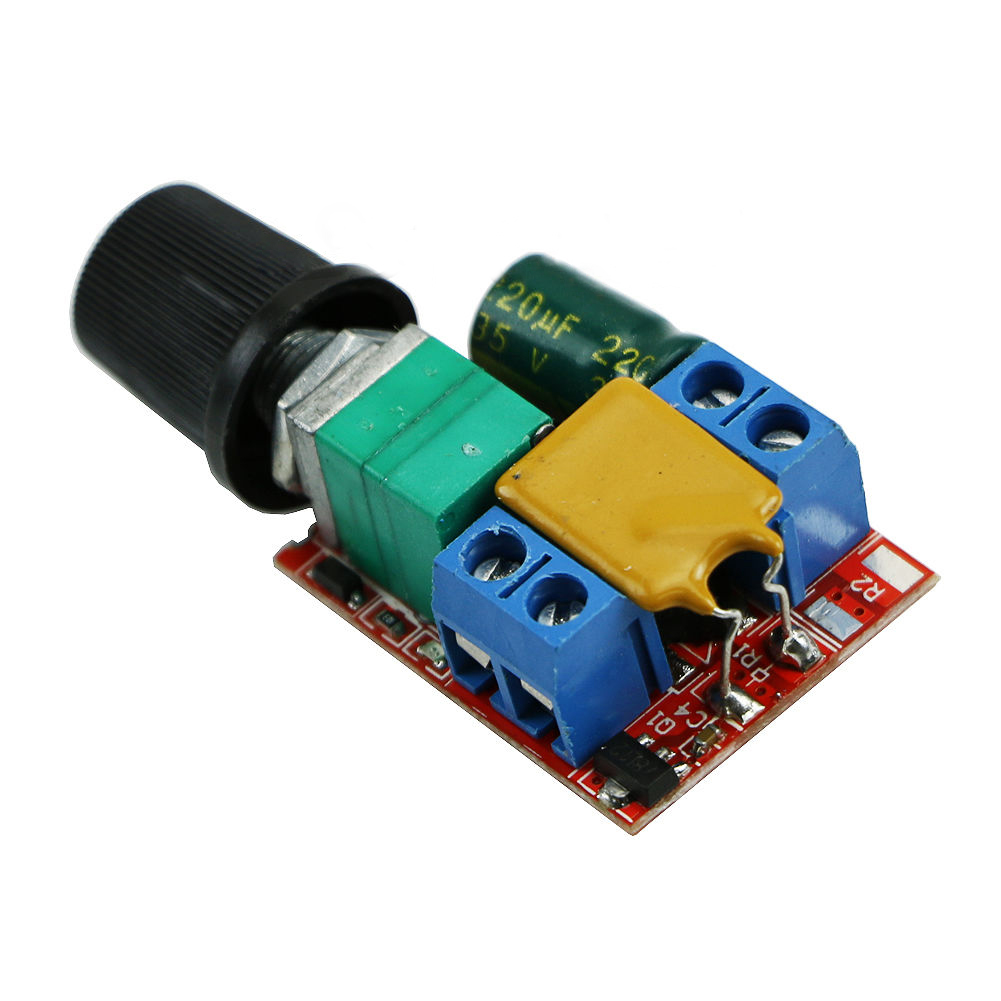

Mini PWM 5A 90W PWM 12V DC Motor Speed Controller Module DC-DC 4.5V-35V Adjustable Speed Voltage Regulator Control Switches Mini Motor Dimmer
DC 4.5V To DC 35V 5A 90W Mini DC Motor PWM Speed Controller Module Speed Regulator Adjustable Electronic Switch Module Board. DC motor governor input is DC, can not directly connected to the AC (for example: home 220V AC), otherwise it will burn! DC power supply positive and negative terminals do not reverse, otherwise the governor may be damaged. The motor can be positive or negative, when the direction of operation and expectations do not match, you can adjust the line order to change the direction. Adjust the potentiometer knob to change the governor output duty cycle, the motor speed changes.
Feature:
- PWM DC motor speed controller is a very safe product.
- When the situation is overcurrent, it will disconnect by itself. after cooling off a few seconds, the fuse will recovery automatically.
- With high voltage and high current resettable fuse
- Mini but useful
- Use: The item is equipped with self-recovery fuse, stable performance.
- Function: It is suitable for LED Dimming.
- Great performance: High efficiency, low heat generating and high torque.
Specification:
- Working voltage: DC3V-35V
- Output current: 0-5A
- Output power: 90W (MAX）
- Quiescent current:0.015 A (Standby Mode）
- PWM duty ratio: 1%-100%
- PWM frequency: 10khz
- Size: 30*24mm
- Color: multicolor
- Material: electric components
