Product Features:
100% Brand new and high quality
Power Supply voltage: DC 4.0-40V
Measuring Range: DC0-100V
Dimension: 33 x 15 x 10mm
Installation size: 28x15mm
Wire length: 15cm
Wires number: 3 wires
Display: three digits 0.28 “LED digital tube
Display color: Red
Option color: if you need blue or green color, please contact our sales manager
Refresh rate: about 200mS / times
Accuracy: 1%(+/- 1 Digit)
Operating temperature: -10 °c -65 °c
Description:

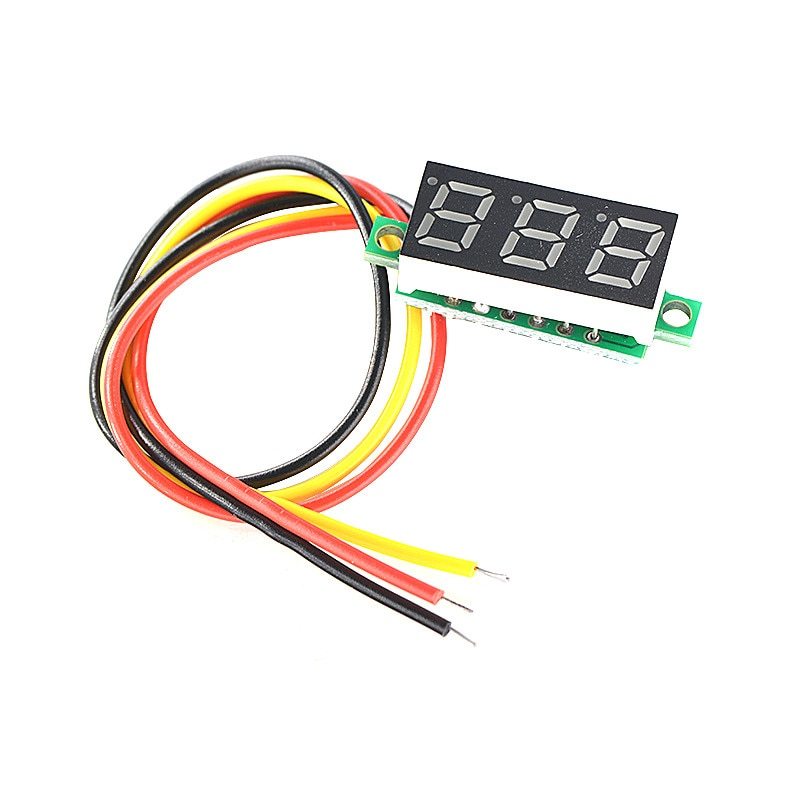

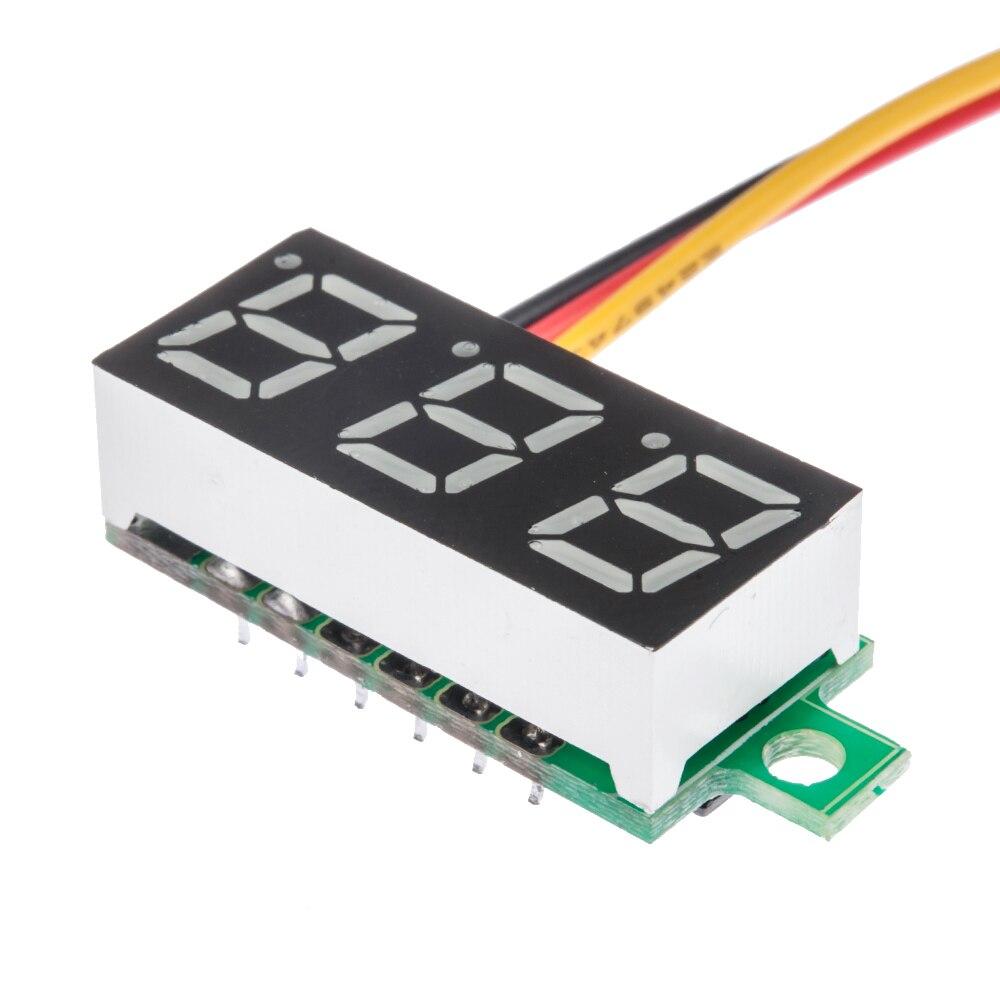

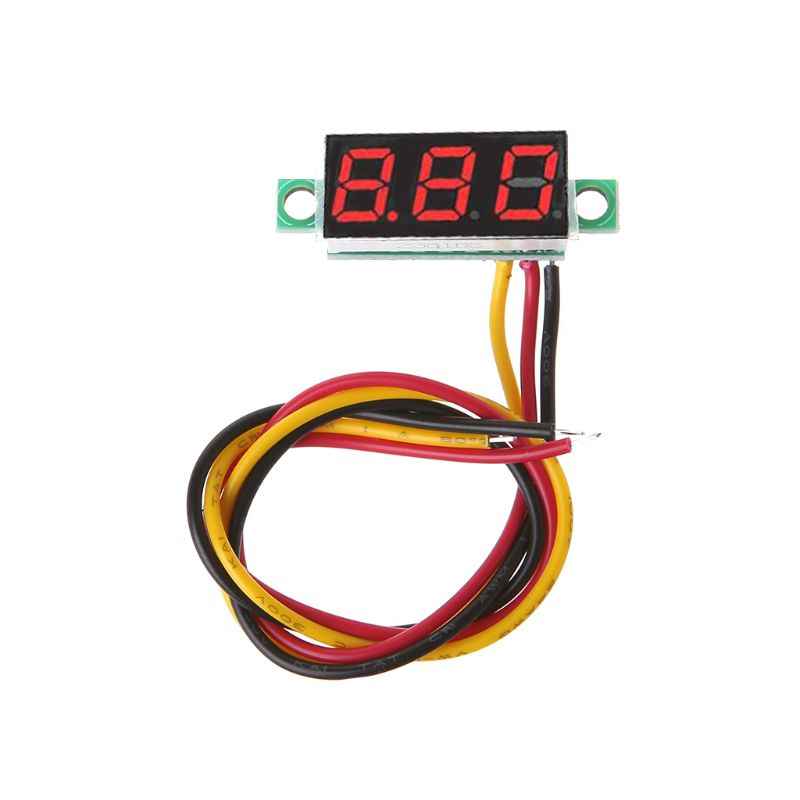

This voltmeter uses 0.36inch LED digital tube without casing. The voltmeter is super thin with small shape and low price and stable performances. It can display well.
This voltmeter’s measurement range is wide, it’s DC0-100V. It need outer working power supply and the voltage is DC4.0-40V. There is protection when the wires aren’t correctly connected.
This voltmeter’s display resolution is 0.1V.
This voltmeter is suitable for clients who has DC power supply,because this can save cost. And it can be used when the voltage need to be measured from 0V.
Precautions:

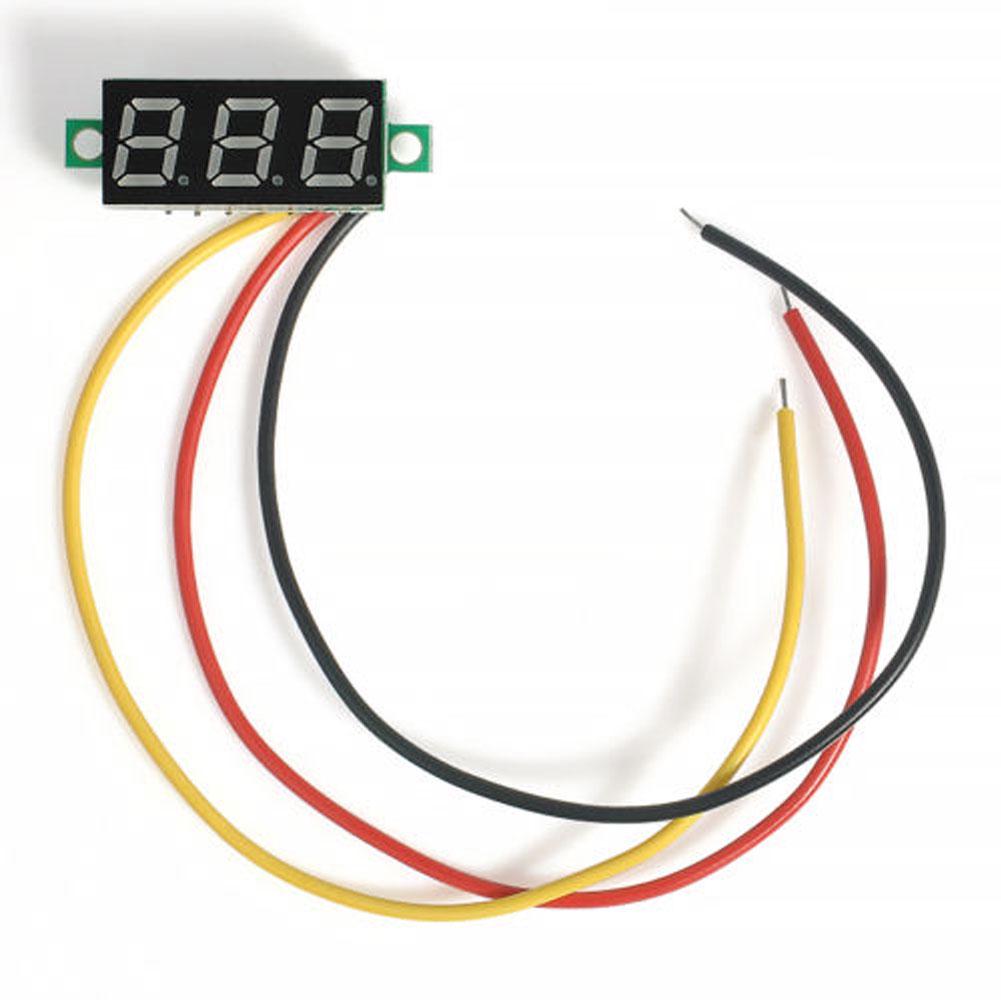

This voltmeter’s measurement range is 0-100V, this voltage is just measurement signal and it can’t be regarded as voltmeter’s working power supply. This voltmeter need outer working power supply which can supply DC4.0-40V as working power supply. About three wires, the black wire is communal negative pole,he white wire is connected to measuring voltage’s positive pole, the red wire is connect to working power supply’s positive pole,the measuring circuit and power circuit’s negative pole are communal.
The voltage of this voltmeter’s working power supply is 4.0-40V, 40V is the voltmeter’s maximum operating limited voltage, please leave enough margin when working, to avoid voltmeter’s permanent damage because of electrical spark, power supply ripple,or other too high abrupt change of voltage.
This voltmeter didn’t do moisture-proof, waterproof, shockproof, anti-oil processing, please be careful or handle by yourself when using.
Package include:
1 x DC 0-100V Digital Voltmeter
