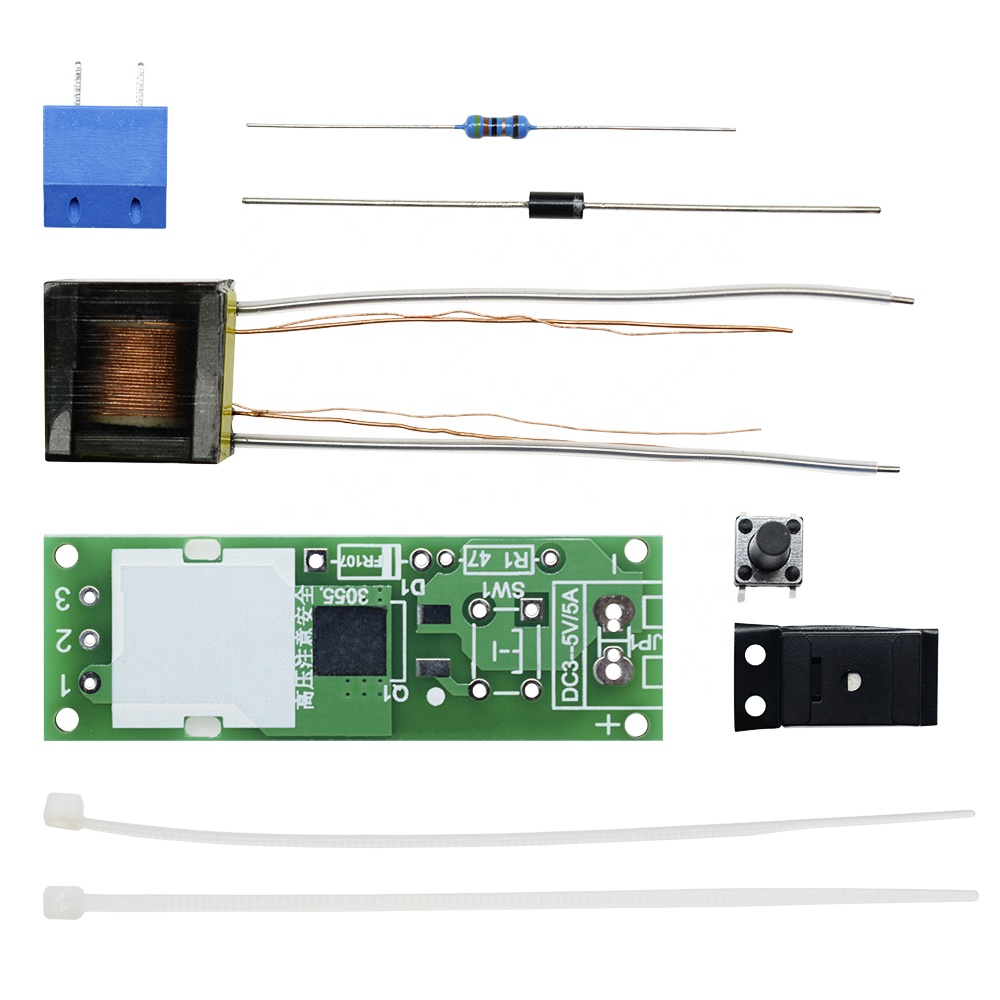

Specification:
Brand new
Size: approx. 54*18mm
Voltage and current power: DC 3-5V, current 5A, more than 15W. It is recommended to use a 3.7V 18650 lithium battery.
Output pulse voltage: 0.5kv-0.8kv
Working frequency: 20khz-25khz
Arc distance: 5-8mm
Feature:
Transformers have been encapsulated with resin, which has high safety and can work reliably and continuously for a long period of time.
The input of this product is connected to a DC 3-5V power supply.
When the secondary high-voltage output is not connected to a high-voltage rectifier diode and capacitor, the output two-stage line end can produce a purple high-temperature arc with a length of ≤0.8 centimeters, no hum, but the temperature is very high. You can easily light up the cigarette lighter momentarily. Even a very thin wire can be burnt (such as the scene of burning the fine wire in oxygen during the junior high school chemical test, but not as intense as in oxygen).
Fine workmanship and good performance.
Small in size.
Easy to use.
Used to DIY electronic lighter.
Note:
It is recommended that the power supply for each cigarette does not exceed 1 minute each time. Pay attention to heat dissipation.
Please allow 1-5mm errors due to manual measurement.
Item color displayed in photos may be showing slightly different on your computer monitor since monitors are not calibrated the same.
