Name: FNIRSI® LCR-ST1 Mini Smart Digital Tweezer LCR SMD ESR Tester
Price: 4999
Availability: OutOfStock

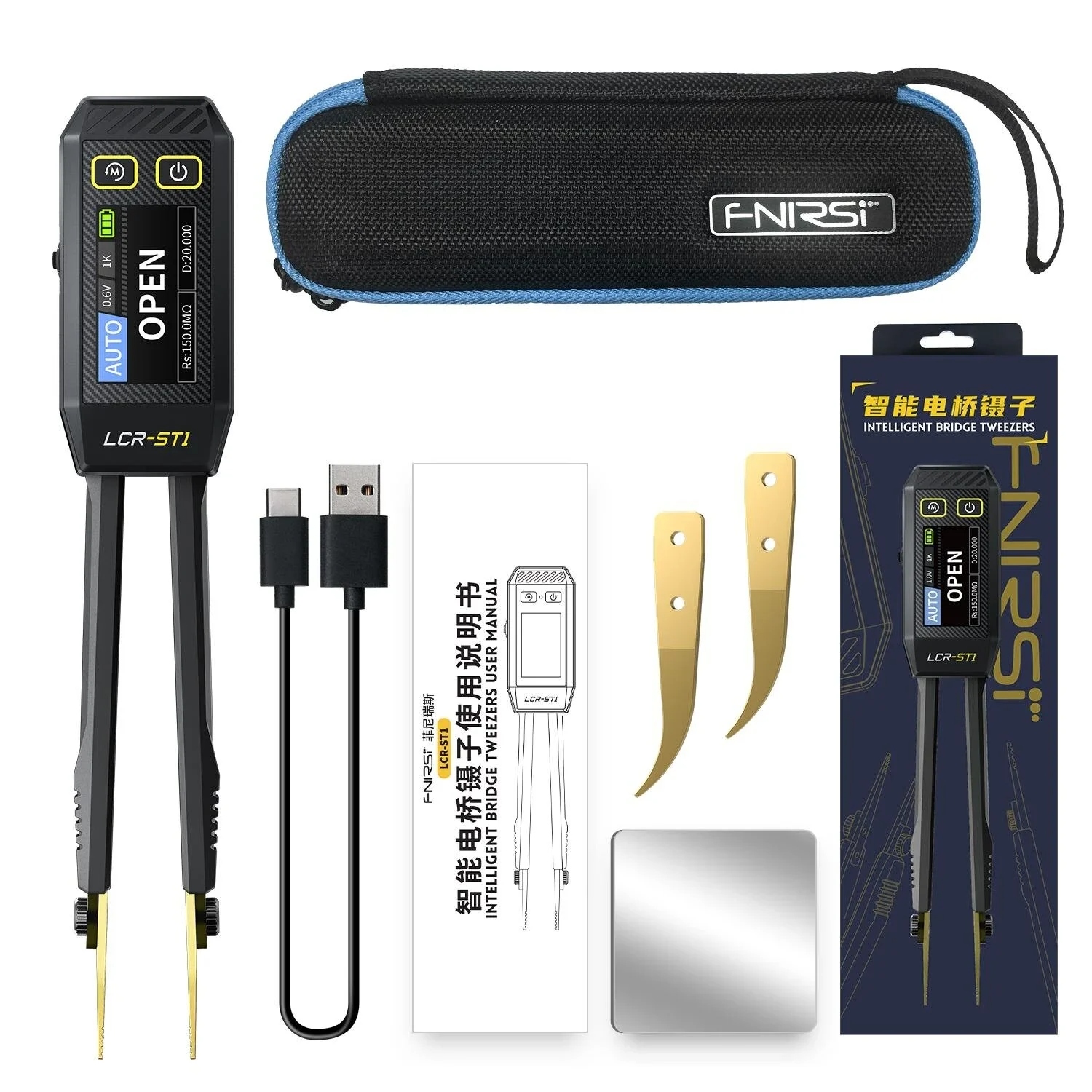

FNIRSI® LCR-ST1 Mini Smart Digital Tweezer LCR SMD ESR Tester

Product Model: LCR-ST1Display: 1.14” color screen
Charging Interface: USB Type-C, 5V/A
Power Supply: 250mAh lithium battery
Size: 28×19×150mm
Weight: 41g
Capacitance: 1mF~22mF (5%±3), 1uF~1mF (2%±3), 1nF~1uF (2%±3), 1pF~1nF (2%±3)
Inductance: 1H~10H (5%±3), 1mH~1H (2%±3), 10uH~1mH (2%±3), 1uH~10uH (2%±3)
Resistance: 1MΩ~10MΩ (5%±3), 1kΩ~1MΩ (1%±3), 1Ω~1kΩ (1%±3), 10mΩ~1Ω (2%±3)
Diode: On voltage 0.7V

Add ৳ 2,910 to cart and get free shipping!

Out of stock

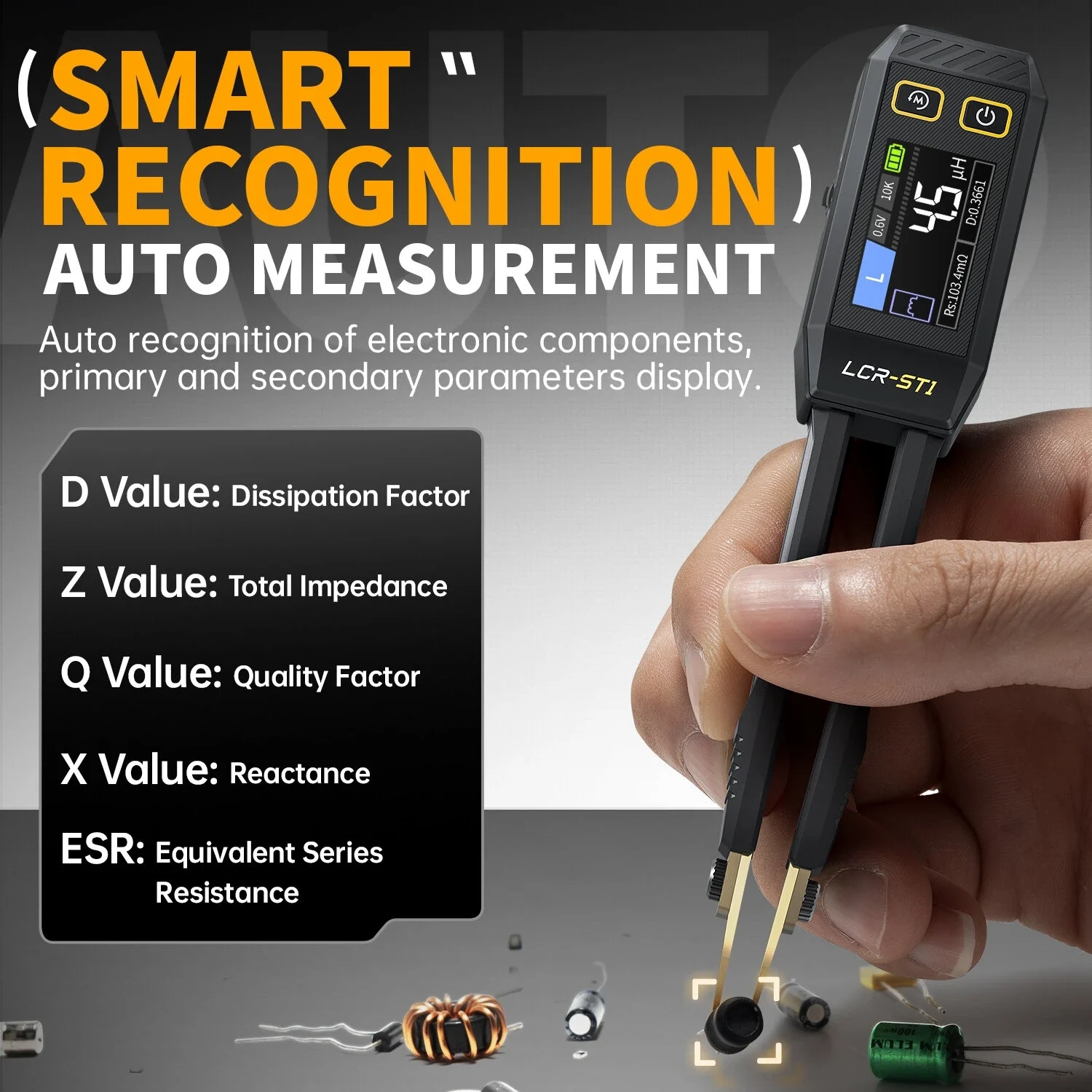

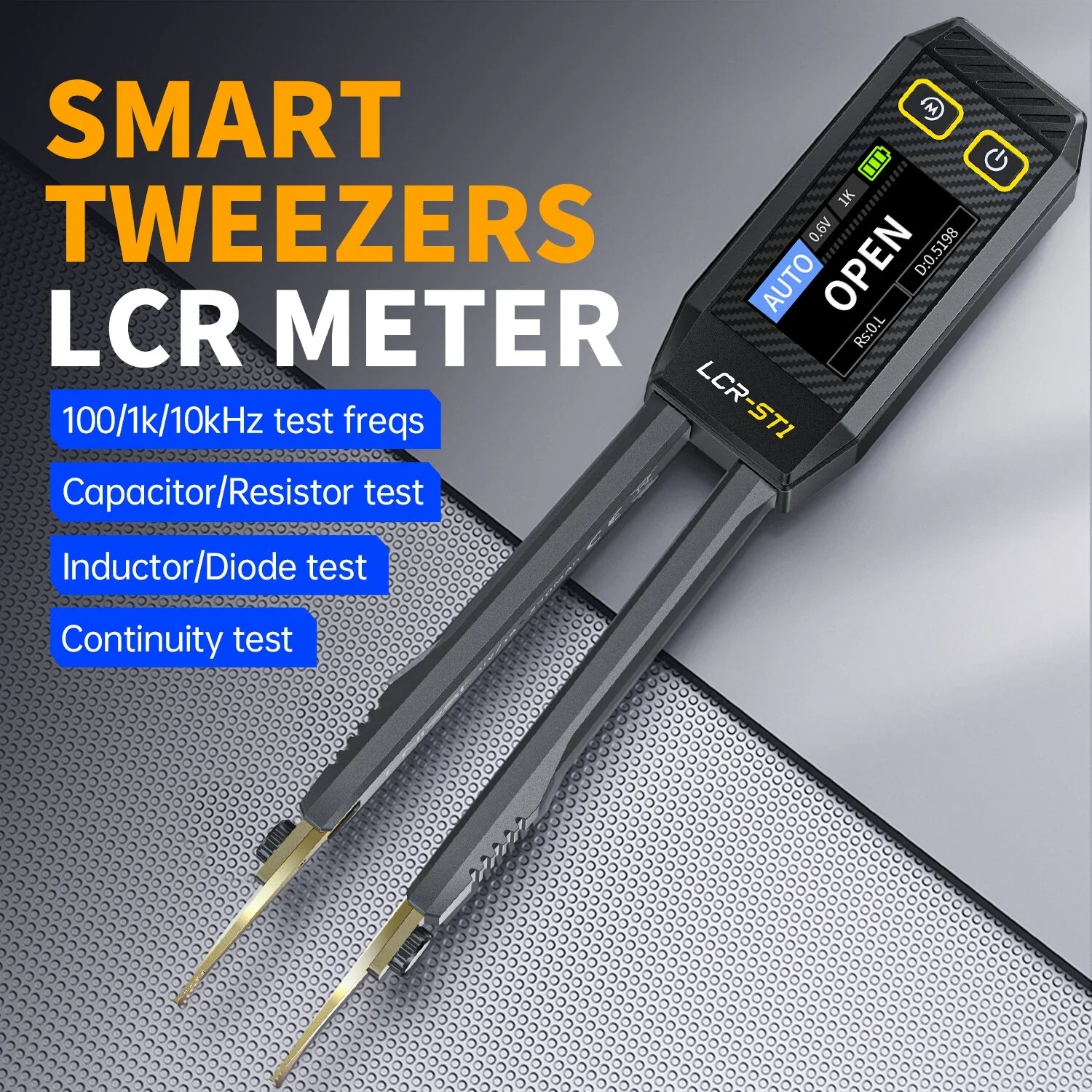

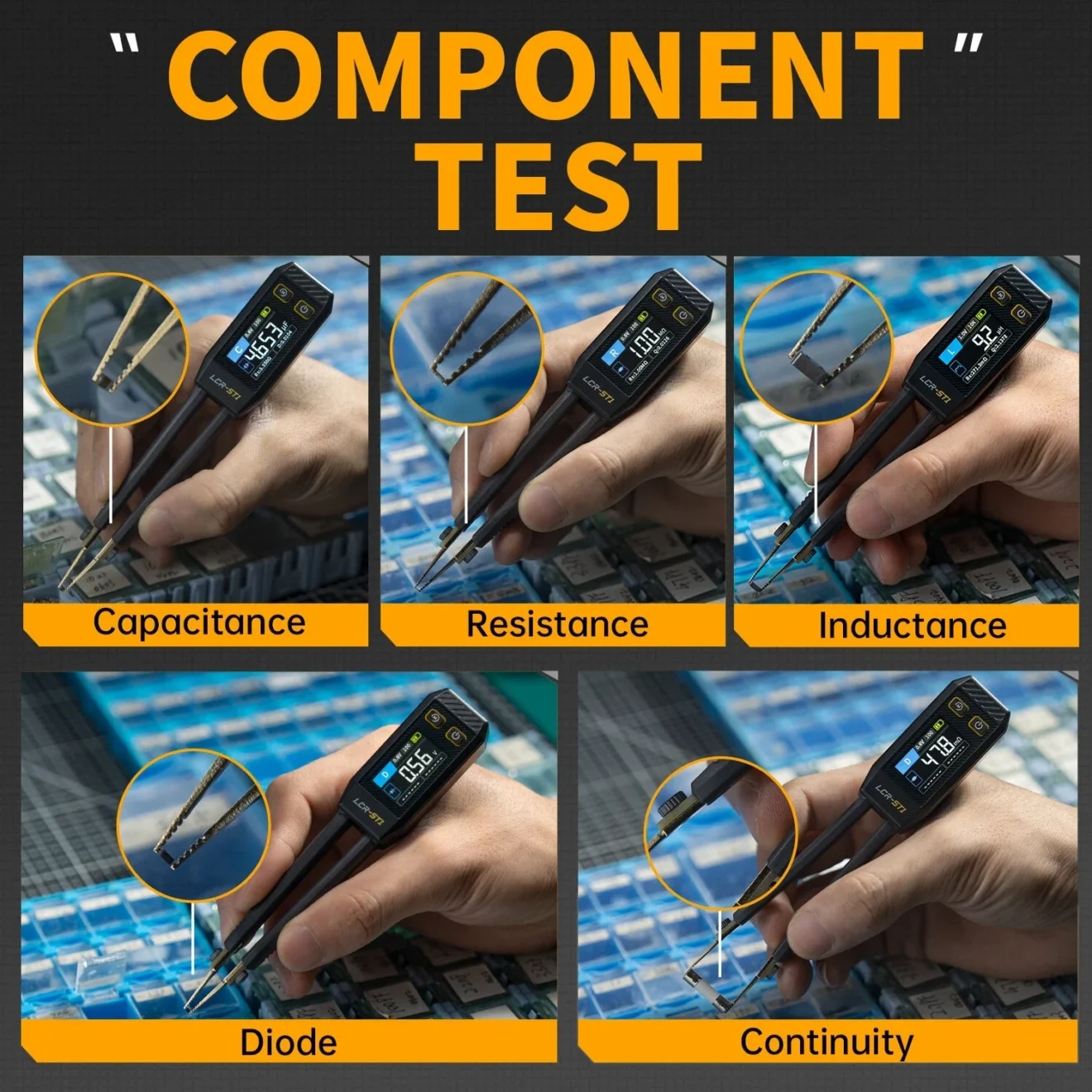

The LCR-ST1, our company’s latest developed tweezer-type LCR tester, is a multi-functional and portable testing instrument. It supports precise automatic measurements of resistance, capacitance, inductance, diodes and Continuity.

This product adopts advanced measurement technology to ensure high accuracy and stability. Its 1.14 inch color screen display and magnetic adsorption function enhance the convenience of use. The built-in 250mAh lithium battery offers a long-lasting usage time and supports three frequencies: 100Hz, 1kHz, and 10kHz. with 0.3V, 0.6V RMS test levels

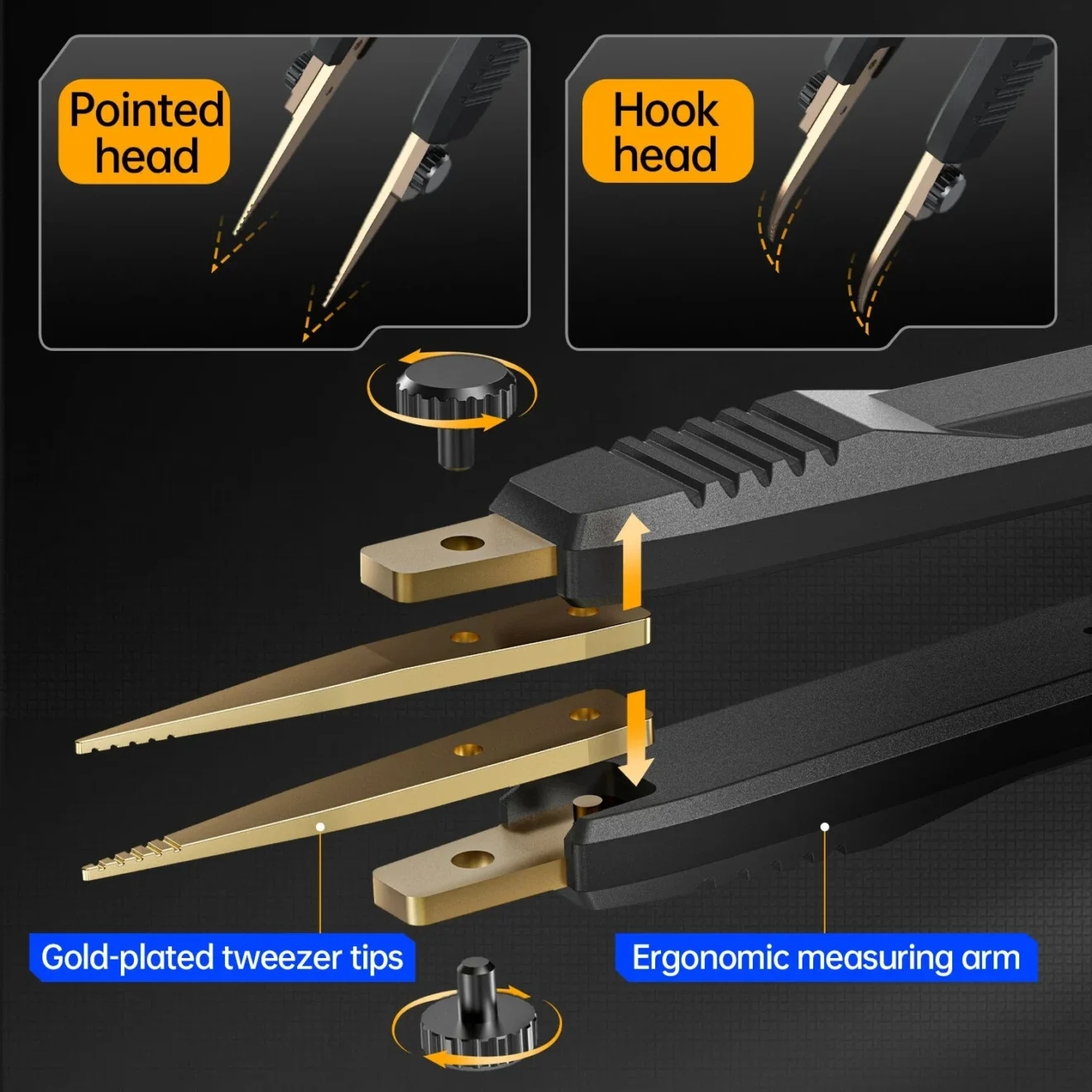

The unique tweezer-shaped design makes it particularly suitable for fine operations in narrow spaces and quick tests of electronic components. The lightweight and portable feature makes it an indispensable and efficient tool for on-site engineers and in laboratories.

Whether you are an experienced engineer or a novice in the field of electronics, the LCR-ST1 will undoubtedly provide you with accurate and reliable measurement results, helping you complete your work more efficiently and accurately. Don’t miss out on this excellent tool that combines functionality and portability!
