Waterseal Mastic Tape CONTRA No.KC80 waterproof and insulation tape 3 Meters Length

1, Use for insulation, filling, and moisture sealing in splices of all types of power cables and optical telecommunication cables.
For PRIMARY INSULATION UP TO 1000 VOLTS.
2, Use for insulating and moisture sealing on the bus bar.
3, Use for moisture sealing high or low voltage junction boxes and irregular splices.

Add ৳ 3,000 to cart and get free shipping!

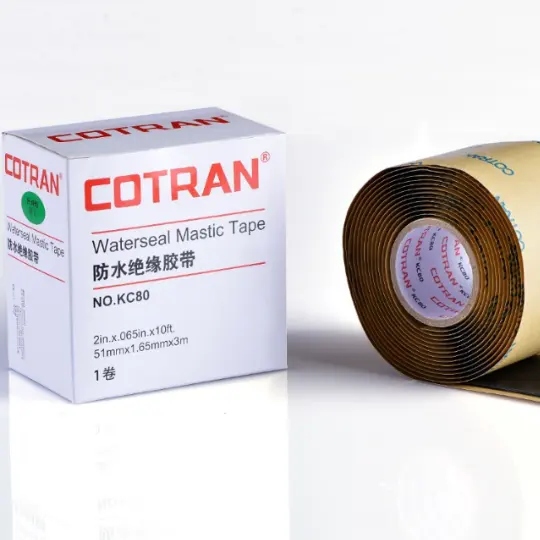

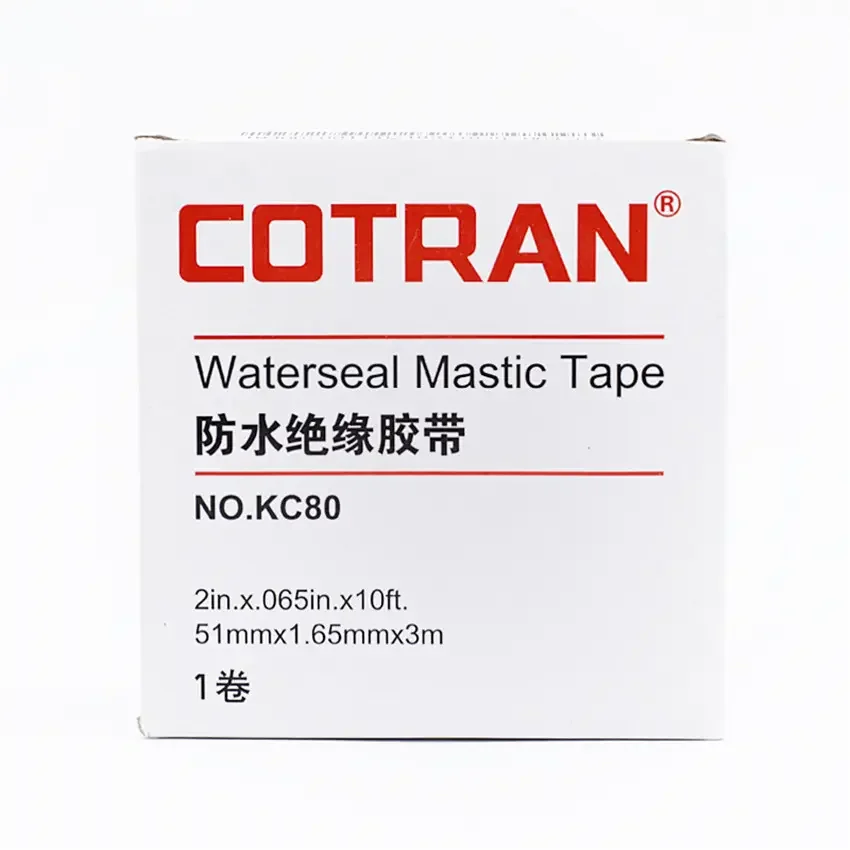

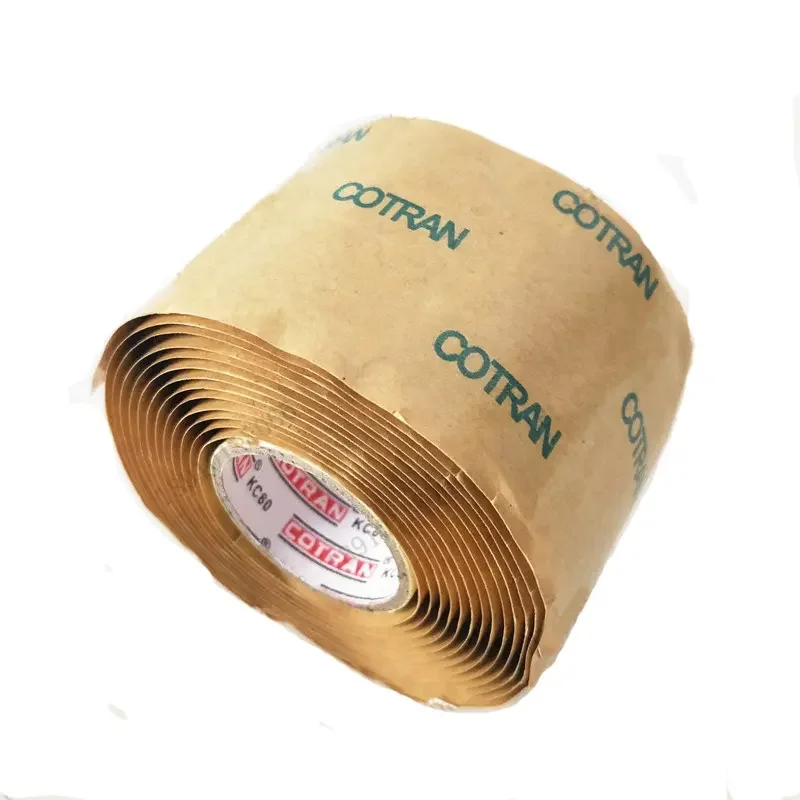

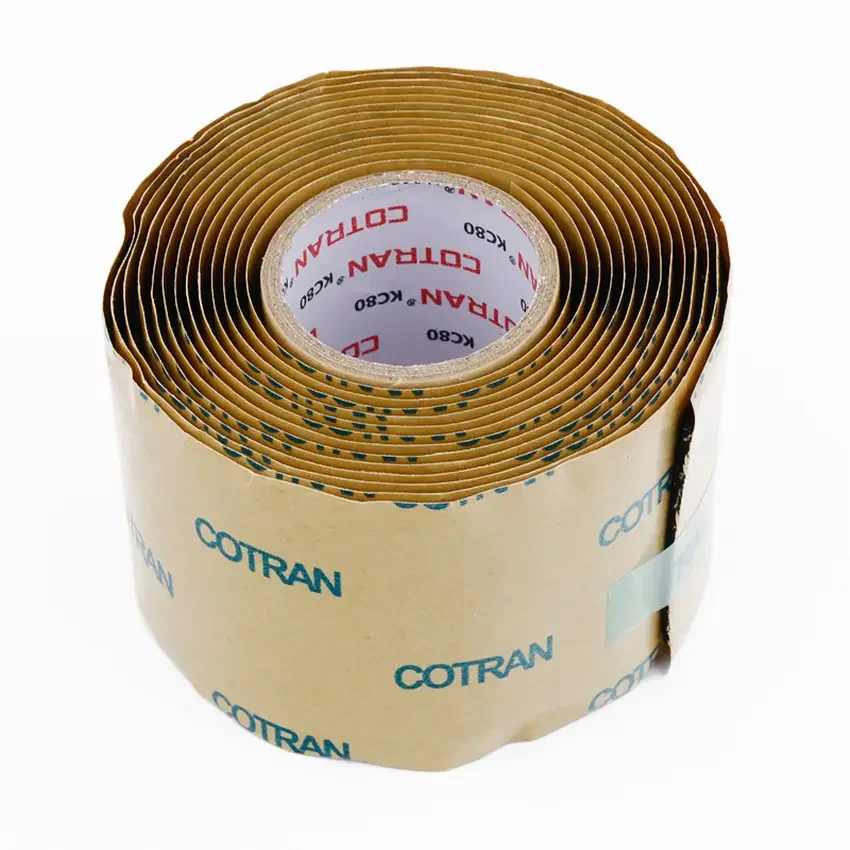

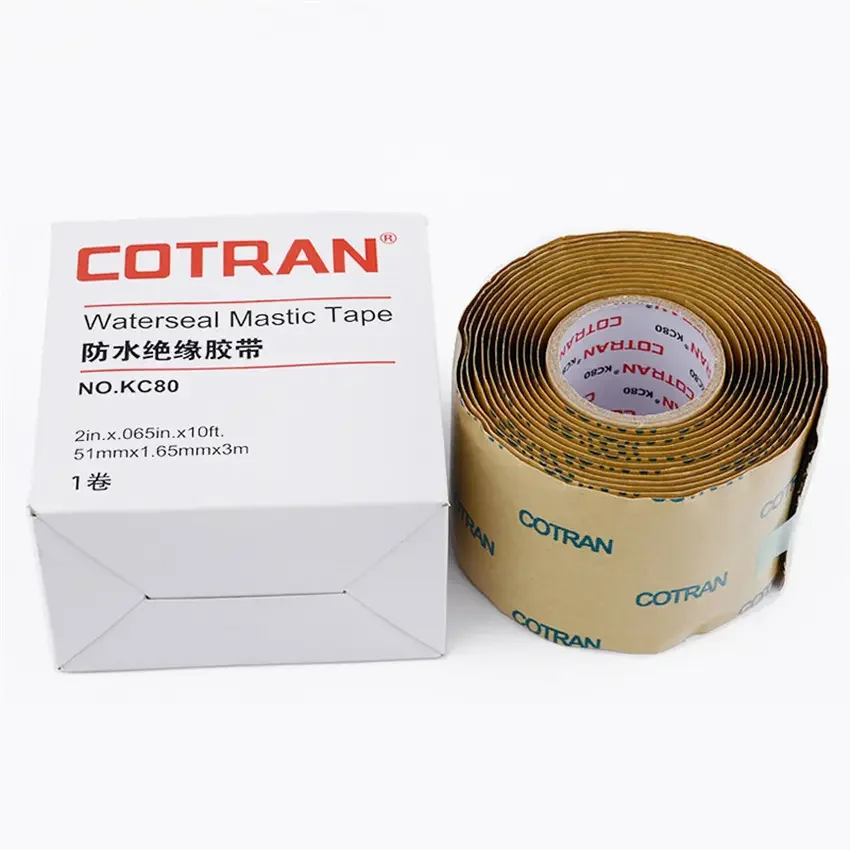

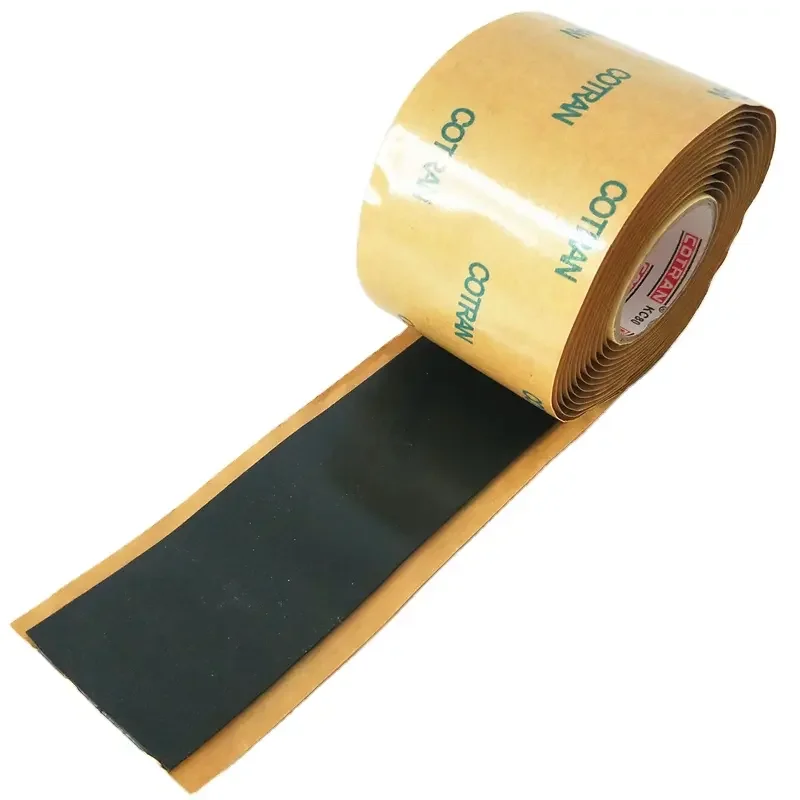

COTRAN NO.KC80 Waterseal Mastic Tape

Instruction:

1, Wipe off the dusts on the splice area before wrapping.
2, Remove the liner and stretch the tape to 1 to 2 times of its original length.
Apply the tape in 50%-lapped with mastic side toward area to be wrapped.
Stretching the tape to 4 times of its original length is not recommended.
3, Be sure to extend wrapping 30mm to 50mm up onto the cable jacket on both sides of the splice area.
4, After KC80 waterseal mastic tape is applied, overwrapping COTRAN PVC insulation tape is recommended. Apply 3 layers of COTRAN
PVC insulation tape in a 50% overlapping with no tension. Make sure not to overstretch the PVC tape during application..

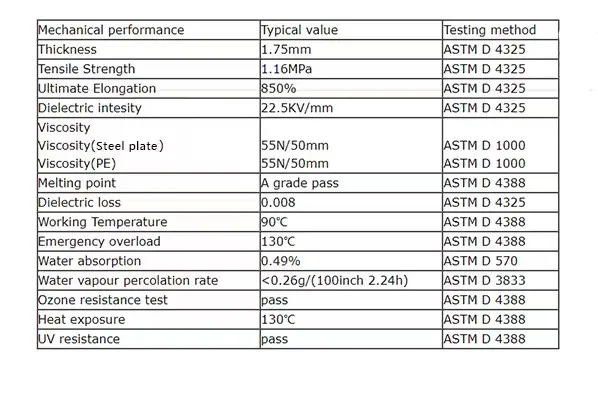

Product Description

item	value
Place of Origin	China
	Hebei
Brand Name	BDCA
Model Number	KC80
Type	Insulation Tape
Material	Butyl rubber
Application	High Voltage
Rated Voltage	1kV
Tensile Strength	1.16Mpa
Color	Black
Size	51mmX1.65mmX3m
Width	51mm
Thickness	1.65mm
Length	3m
Packing	BOX
Adhesive	Rubber
Usage	Insulation Protection
